Removing Rear Spoiler: Notes

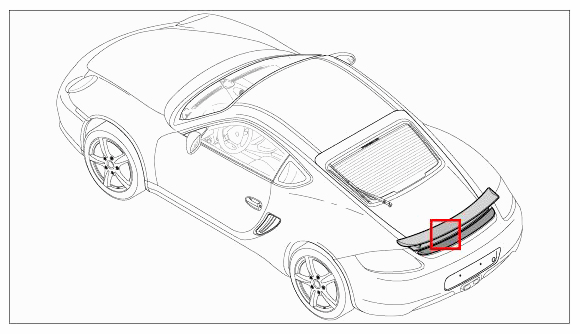

Fig 1: Identifying Rear Spoiler Installation Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

• The sealing cord is damaged when removing the rear spoiler!
• Use a new sealing cord during installation.

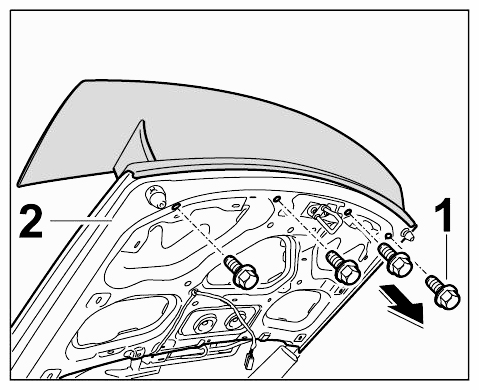

1. Unscrew the fastening screws -1-  from below through the openings on the rear lid -2-  (-arrow-  ).

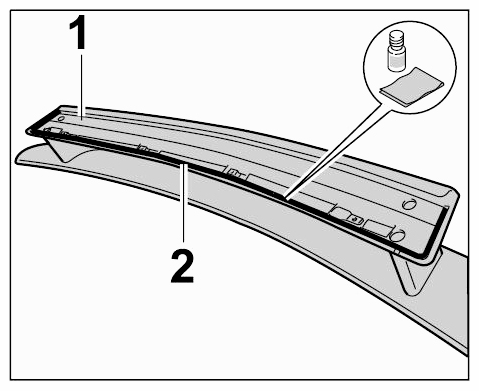

   Fig 2: Loosening Rear Spoiler

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Information

   • The adhesive tape protects the rear lid from damage when removing the rear spoiler.
2. Mask the rear lid -2-  with adhesive tape -1-  .
   Fig 3: Covering Rear Lid

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

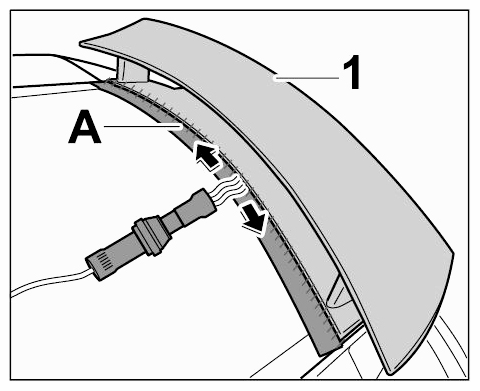

3. Heat the rear spoiler -1-  in the marked area -A-  (adhesive tape) with the hot-air blower v.a.g 1416  (-arrows-  ).
   Fig 4: Loosening Rear Spoiler

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

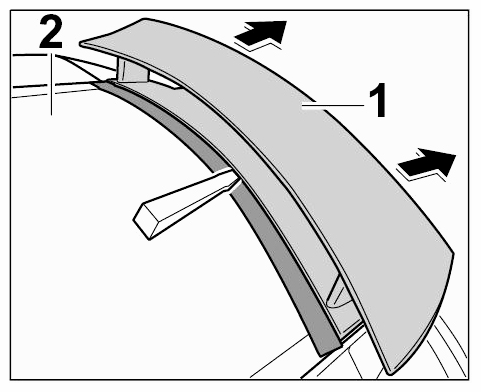

4. Insert a plastic wedge between the rear spoiler -1-  and rear lid -2-  and loosen the bonded joint.
   Fig 5: Removing Rear Spoiler

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
5. Remove the rear spoiler -1-  by guiding it towards the rear -arrows-  .

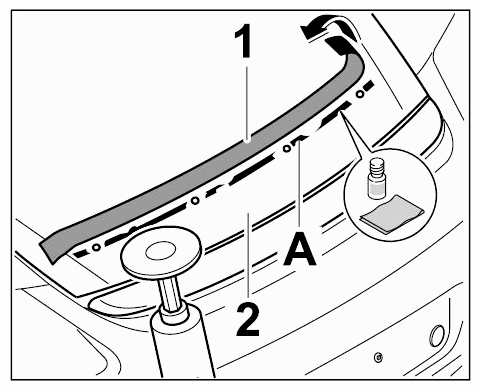

6. Remove adhesive residue -A-  on the rear lid -2-  using the film eraser Nr.174 Pos.1  and holder Nr.174 Pos.2  .
   Fig 6: Removing Adhesive Residue

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
7. Pull off adhesive tape -1-  (-arrow-  ) and clean bonding surfaces with isopropanol.

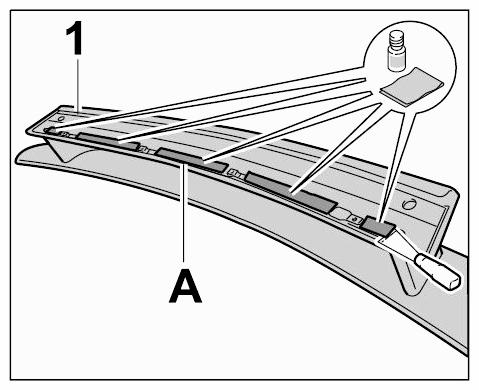

8. Scrape off adhesive residue -A-  on the rear spoiler -1-  using a metal scraper.
   Fig 7: Removing Adhesive Residue

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
9. Clean bonding surfaces with isopropanol.

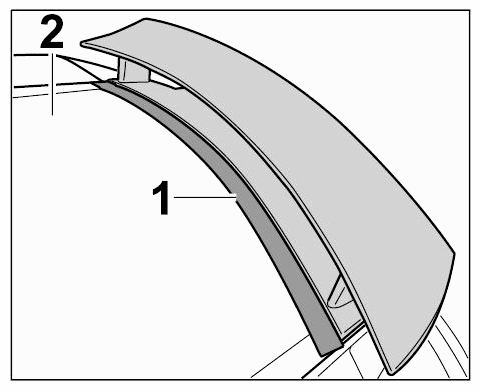

10. Pull the sealing cord -2-  (remains of sealing cord) off the rear spoiler -1-  and clean bonding surfaces with isopropanol.
    Fig 8: Removing Sealing Cord

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

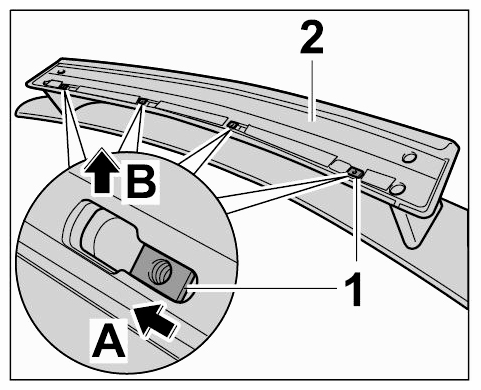

11. Slide the threaded plate -1-  to one side -arrow A-  and remove it from the rear spoiler -2-  (-arrow B-  ).
    Fig 9: Removing Threaded Plates

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

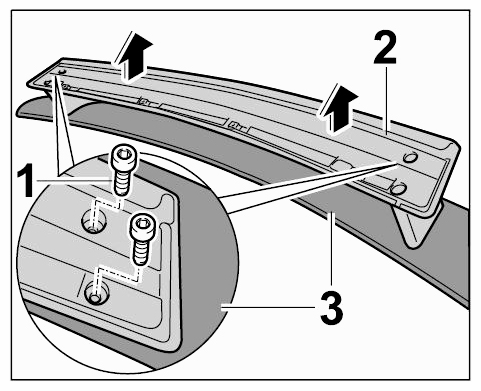

12. Unscrew fastening screws -1-  .
13. Disconnect upper part of rear spoiler -3-  from lower part of rear spoiler -2-  (-arrows-  ).
Fig 10: Disassembling Rear Spoiler
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
