Removing Upper Part Of The Rear Spoiler

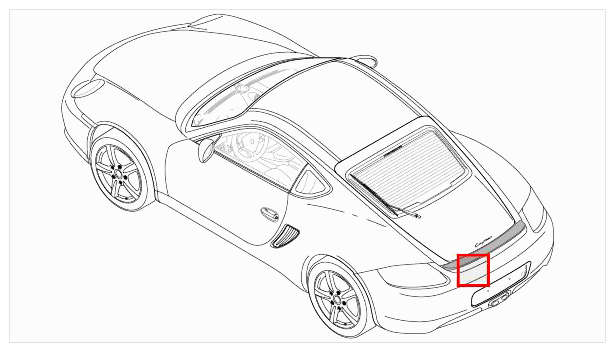

Fig 1: Identifying Rear Spoiler Installation Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

• The rear spoiler extends at speeds of approximately 120 km/h (75 mph) and retracts again at approx. 80 km/h (50 mph).
• The rear spoiler reduces the drag and, particularly at higher speeds, reduces the rear-axle lift.
• The warning lights illuminate for a lamp check when the ignition is switched on. The warning lights in the instrument panel and the on-board computer light up if the rear spoiler does not extend or reach its end position.

1. To remove the rear spoiler drive, the rear spoiler must be manually extended with the ignition switched on, using the rocker switch in the passenger compartment.
2. Unscrew fastening screws -1-  and separate rear spoiler upper part -2-  from rear spoiler lower part -3-  by removing to the rear.

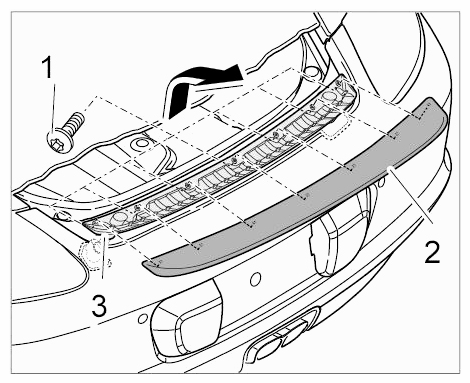

   Fig 2: Removing Rear Spoiler Upper Part

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
