Removing Lower Part Of The Rear Spoiler

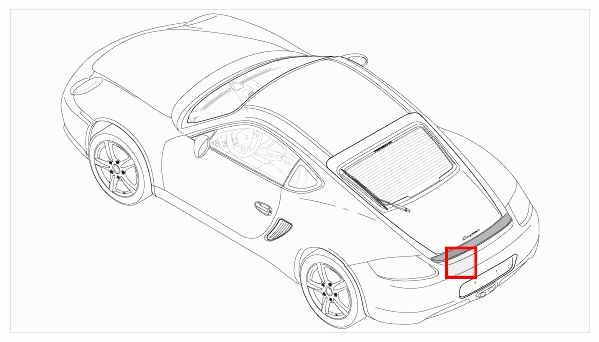

Fig 1: Identifying Rear Spoiler Installation Position
G09591105Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Unscrew fastening nuts -1-  and remove rear spoiler lower part upwards -2-  .

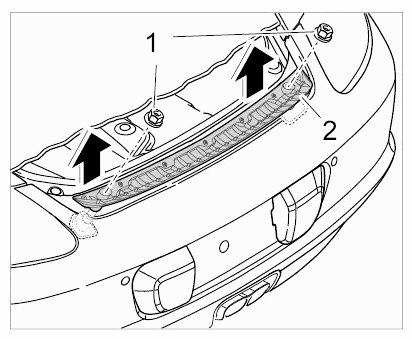

    Fig 2: Removing Rear Spoiler Lower Part
    G09591106Courtesy of PORSCHE CARS NORTH AMERICA, INC.
