Installing Upper Part Of The Rear Spoiler

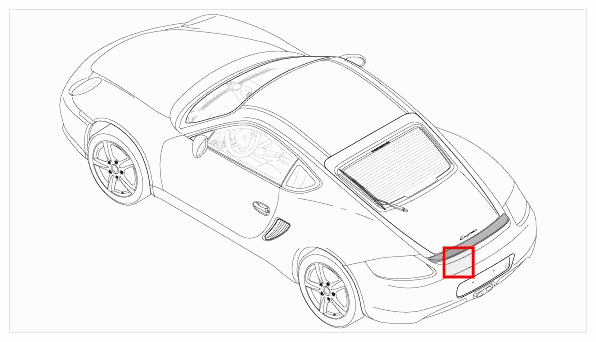

Fig 1: Identifying Rear Spoiler Installation Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Position rear spoiler upper part -2-  on rear spoiler lower part -3-  and screw down with the fastening screws -1-  .

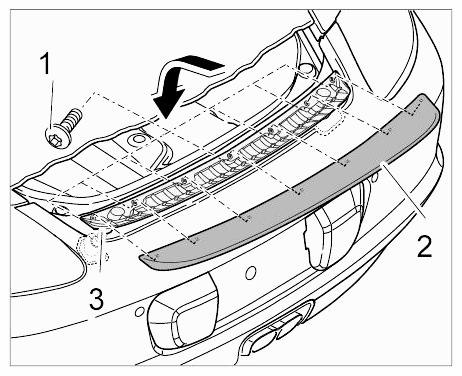

   Fig 2: Installing Rear Spoiler Upper Part

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Check gap dimensions on rear spoiler. → WM 5X00IN DIAGRAM - BODY GAP DIMENSIONS (ALL MODELS)
