Installing Lower Part Of The Rear Spoiler

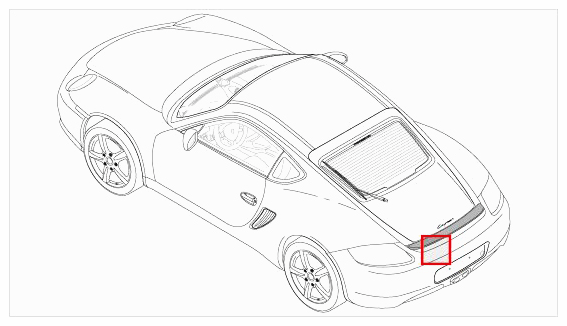

Fig 1: Identifying Rear Spoiler Installation Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Position rear spoiler lower part -2-  on the rear spoiler drive -3-  , align and tighten with the fastening nuts -1-  . Tightening torque → Tightening torque: 23 Nm (17 ftlb.)

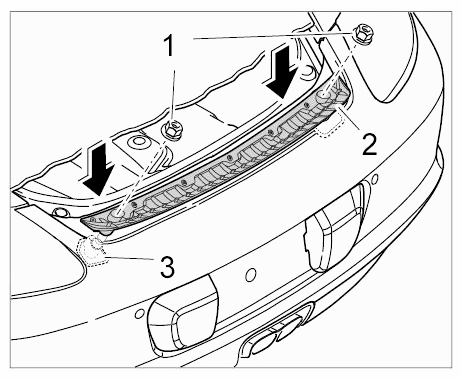

   Fig 2: Identifying Lower Rear Spoiler Installing Position

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
