Removing Right Air Inlet Grille

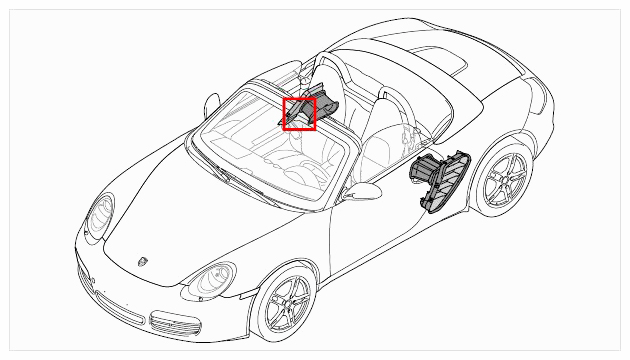

Fig 1: Identifying Air Inlet Installation Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Remove air-inlet slat.
1. 1.1. Release air-inlet slat -1- in the middle by hand -arrow A- .
2. 1.2. Release air-inlet slat -1- using a screwdriver -2- (-arrow B- ) and remove it -arrow C- .

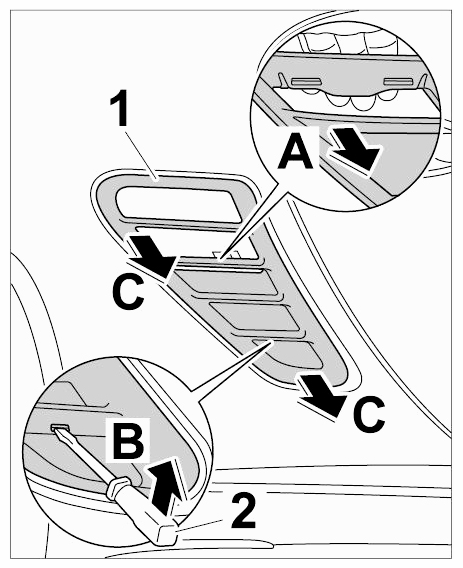

  Fig 2: Removing Air-Inlet Slat
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove air inlet grille.
1. 2.1. Release locking tabs with a screwdriver -arrow A- and remove air inlet grille -1- (-arrow B- ).

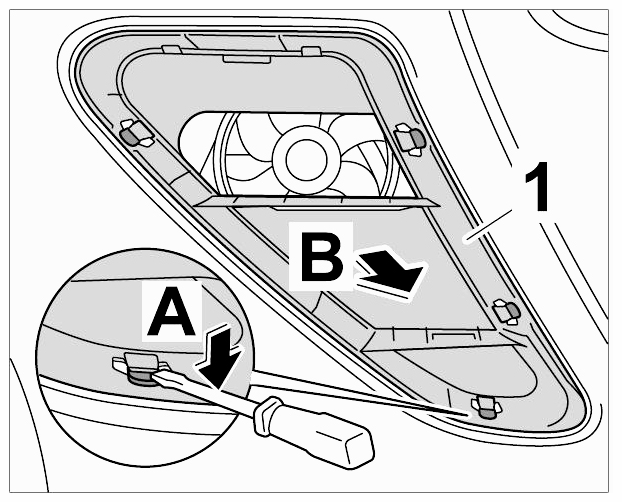

  Fig 3: Removing Air Inlet Grille
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Check fixing clip.
1. 3.1. Check fixing clip and replace if necessary.

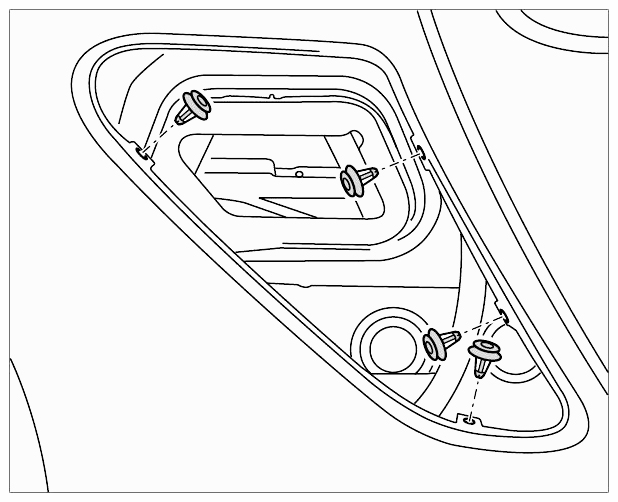

  Fig 4: Checking Air Inlet Grille Fixing Clip
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
