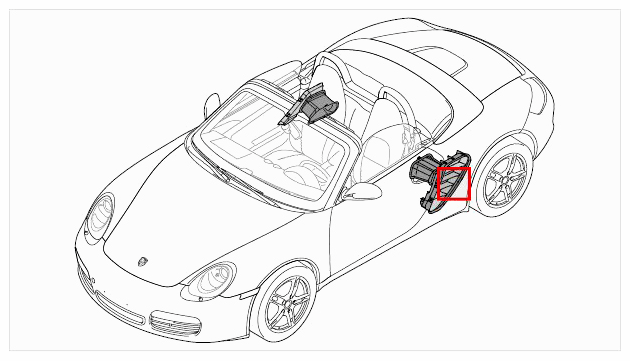

Removing Left Air Inlet Grille
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

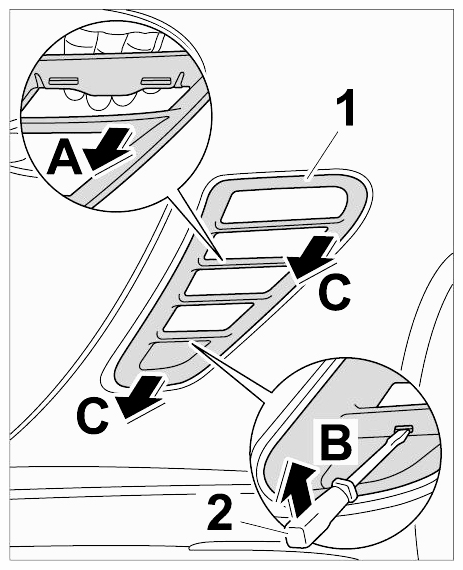

- Remove air-inlet slat.
- 1.1. Release air-inlet slat -1-
in the middle by hand -arrow A-
.
- 1.2. Release air-inlet slat using a screwdriver -2-
(-arrow B-
) and remove it -arrow C-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

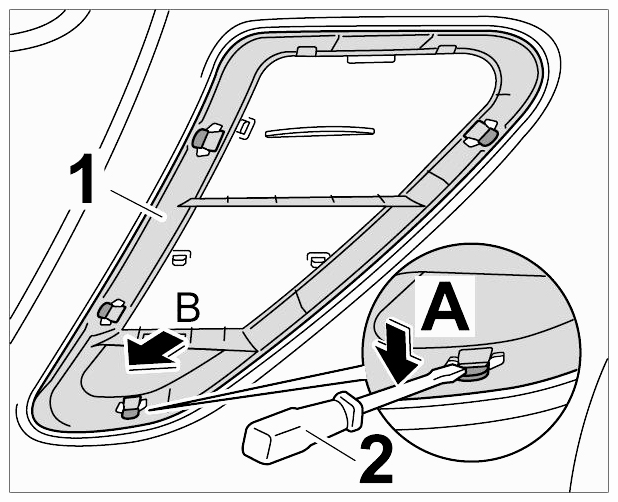

- Remove air inlet grille.
- 2.1. Release locking tabs with a screwdriver -2-
(-arrow A-
) and remove air inlet grille -1-
(-arrow B-
).
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

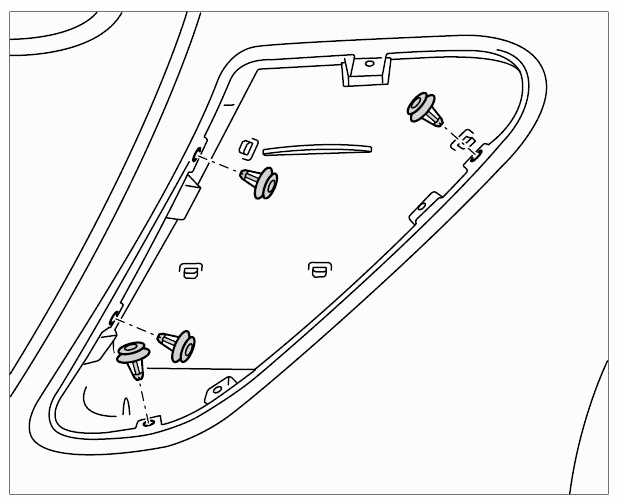

- Check fixing clip.
- 3.1. Check fixing clip and replace if necessary.
