Installing Flow Duct On The Right

Information

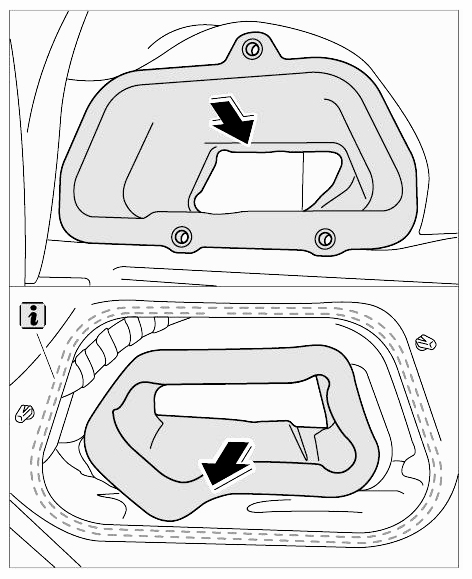

Stick commercially available body sealing strip in the marked area when replacing the flow duct.

1. 1.1. Position the flow duct on the body and press it in.
   Fig 1: Installing Flow Duct

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

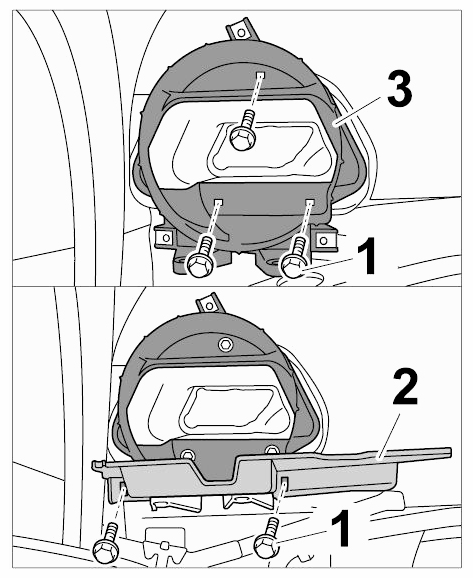

1. 2.1. Position air scoop -3-  and secure in place with the fastening screws -1-  . Tightening torque → Tightening torque: 9.7 Nm (7.5 ftlb.)
2. 2.2. Position air guide -2-  and secure in place with the fastening screws -1-  . Tightening torque → Tightening torque: 9.7 Nm (7.5 ftlb.)
   Fig 2: Installing Air Scoop And Air Guide

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

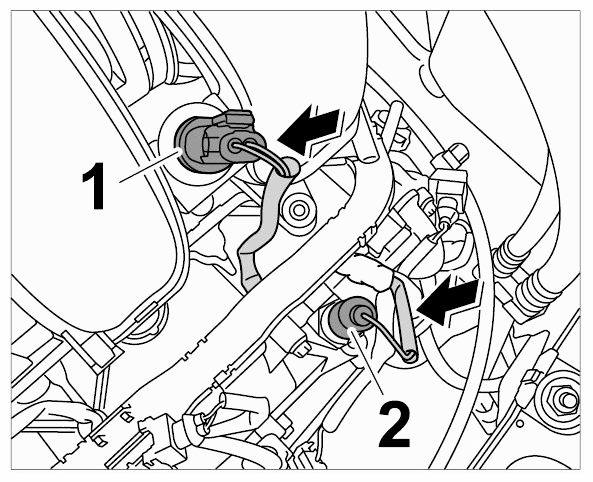

1. 3.1. Insert temperature sensor -1-  into the rubber sleeve.
2. 3.2. Connect plug connection for oil pressure switch -2-  .
   Fig 3: Connecting Electric Plug Connections

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
