Installing Left Air Inlet Grille

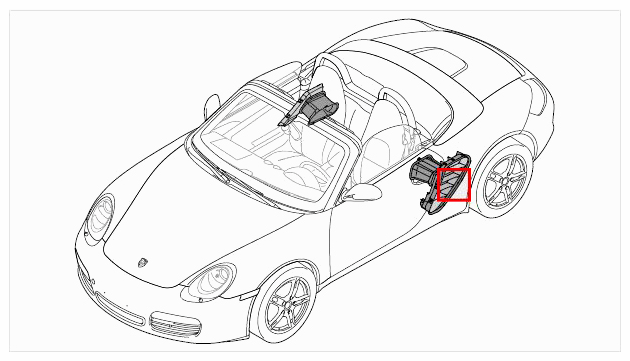

Fig 1: Identifying Air Inlet Installation Position
G09591055Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Install air inlet grille.
    1. 1.1. Press air inlet grille in until you feel the locking tabs engage.

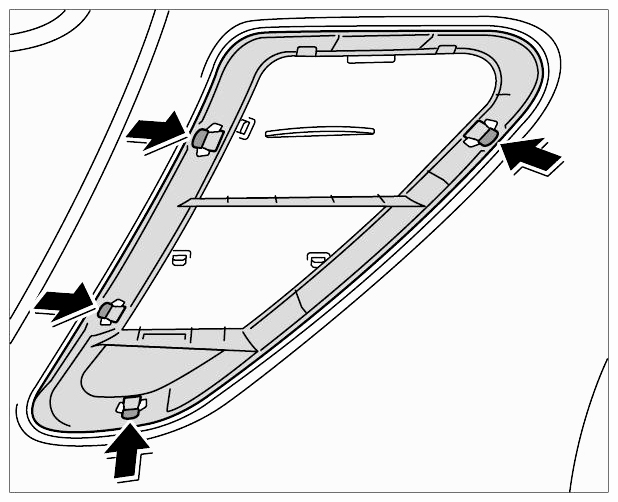

      Fig 2: Installing Air Inlet Grille
      G09591056Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Install air inlet slat.
    1. 2.1. Press air inlet slat in until it clicks into place.

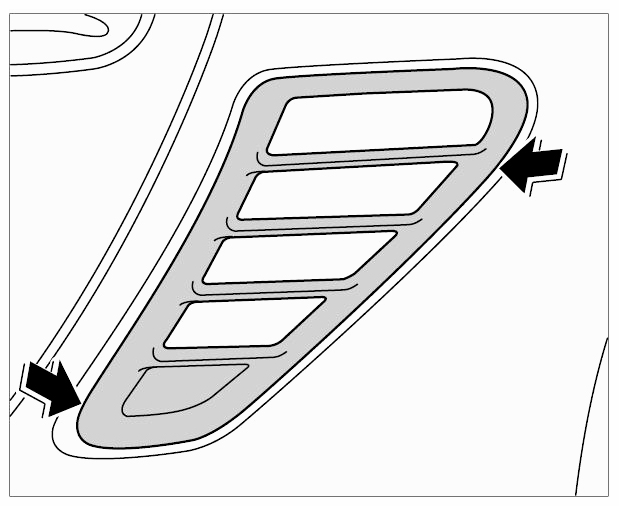

      Fig 3: Installing Air Inlet Slat
      G09591057Courtesy of PORSCHE CARS NORTH AMERICA, INC.
