Replacing The Cayman Model Logo
- Find the center of the lid.

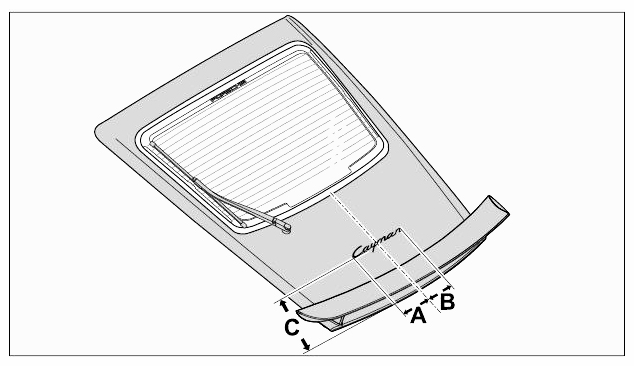

- Position the logo -Cayman-
with the dimensions -A and B- → Dimension: 264.7 mm+/-1 mm
and -C- → Dimension: 130 mm+/-1 mm
on the lid and stick it on.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
