Removing The Rear Logo

  1. Heat the rear lid
    1. 1.1. Heat the rear lid -1-  in the area of the logo -2-  using the hot-air gun v.a.g 1416 -3-  .
      Fig 1: Heating Rear Logo
      G09591008Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Lifting up the logo using a plastic wedge
    1. 2.1. Move a plastic spatula -1-  under the logo -2-  and lift it up.

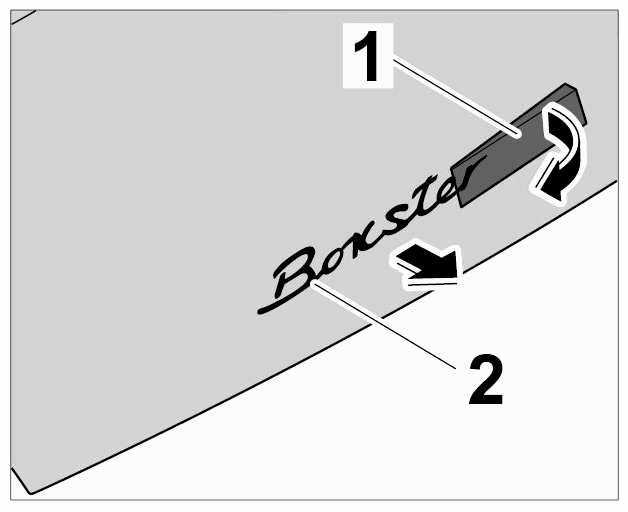

      Fig 2: Lifting Up Logo
      G09591009Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Clean the cover
    1. 3.1. Loosen the adhesive residue -1-  on the cover -2-  using a silicone remover and remove it.

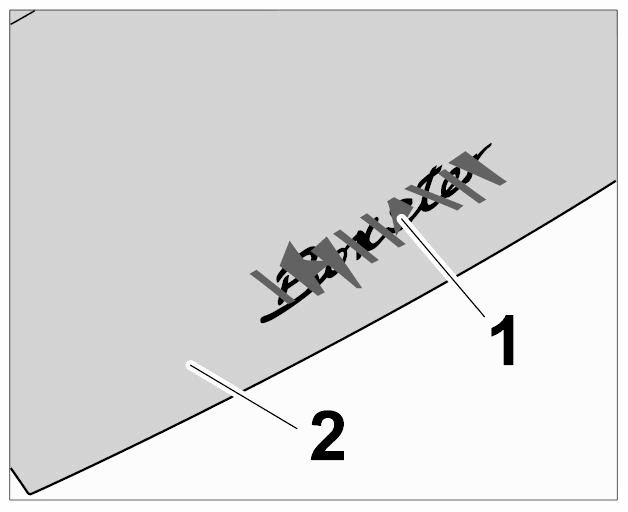

      Fig 3: Cleaning Logo Cover
      G09591010Courtesy of PORSCHE CARS NORTH AMERICA, INC.
