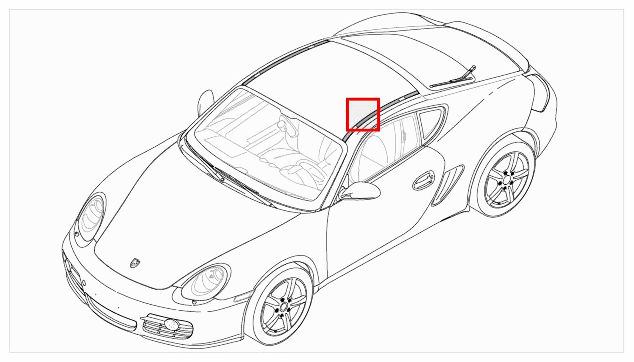

Removing Roof Joint Cover Strip
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

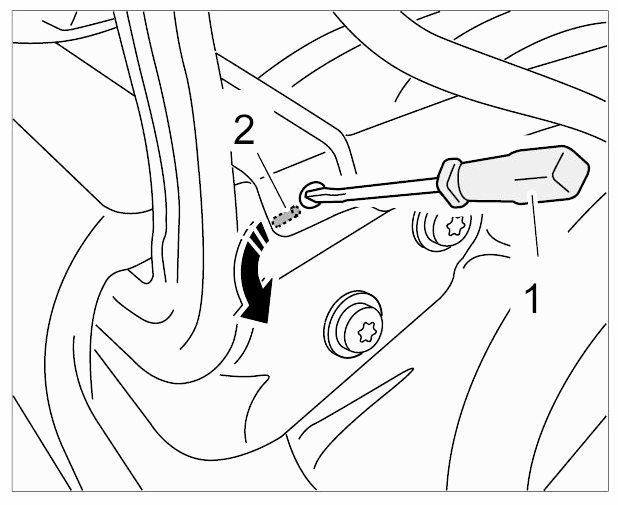

- Press out retaining pin using a narrow screwdriver and remove expanding clip -1-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

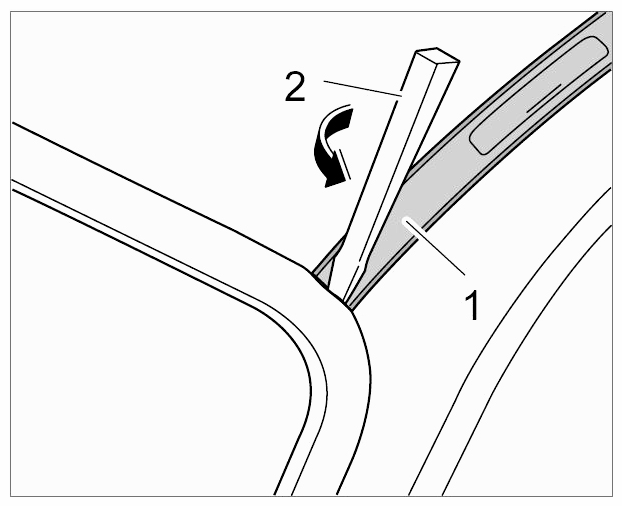

- Lift roof joint cover strip -1-
using a plastic spatula -2 - and unclip all the way along.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

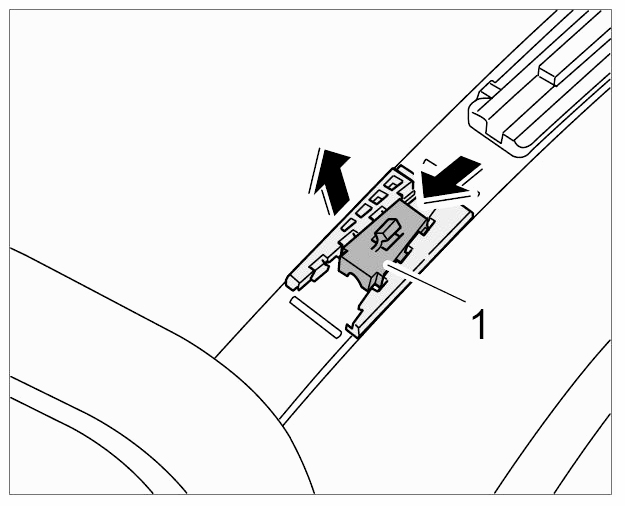

- Move wedge piece of spreader -1-
with a plastic wedge. Remove spreader.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

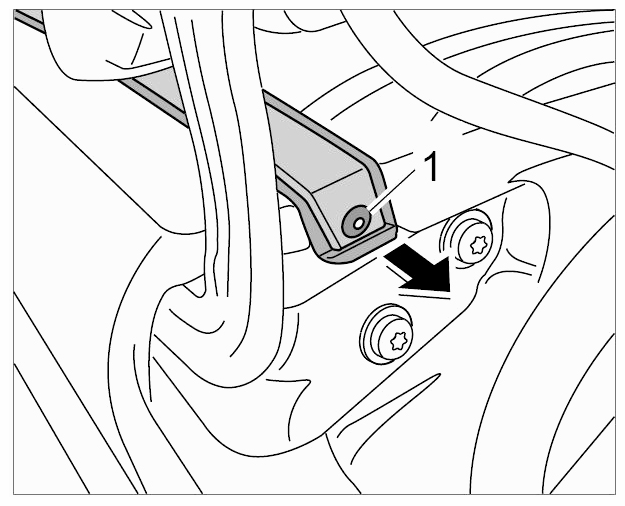

- Insert a narrow screwdriver -1-
in the hole in the body and remove the retaining pin -2-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
