Installing Roof Joint Cover Strip
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

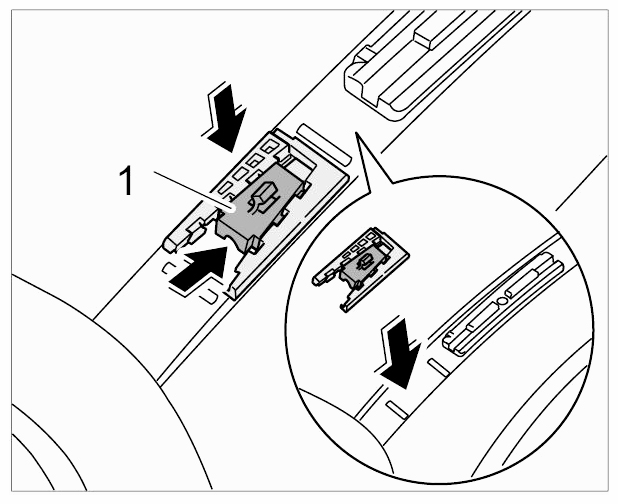

- Position spreaders -1-
(3 per roof channel) in the recesses, beginning at the front. Press the spreader right down into the roof channel.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
- Push wedge piece into the spreader -1-
until the spreader is braced in the roof channel.

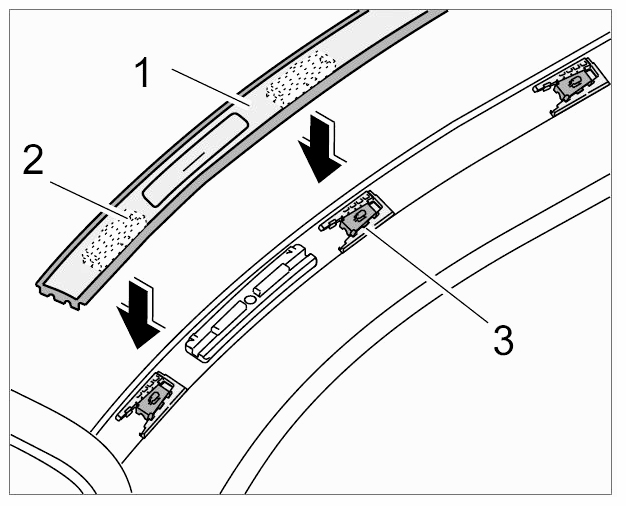

- Position the roof joint strip -1-
on the roof channel, and align the roof joint clips -2-
in the roof joint cover strip with the spreaders -3-
so that they lie directly above one another.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
- Press in roof joint cover strip -1-
until it audibly engages.

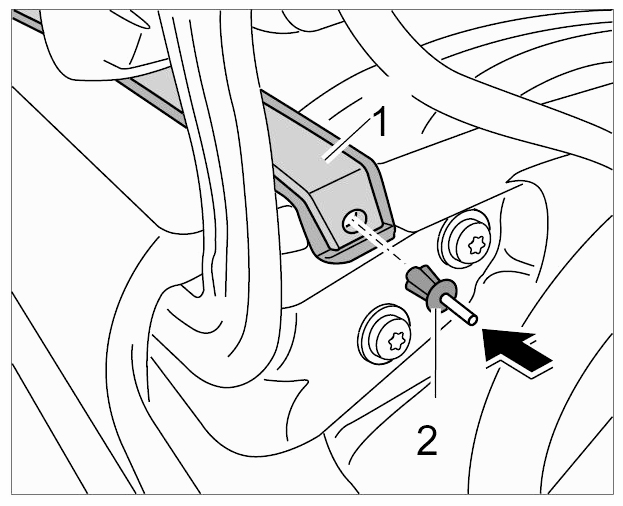

- Fasten roof joint cover strip -1-
with the expanding clip -2-
by pressing in the retaining pins.
