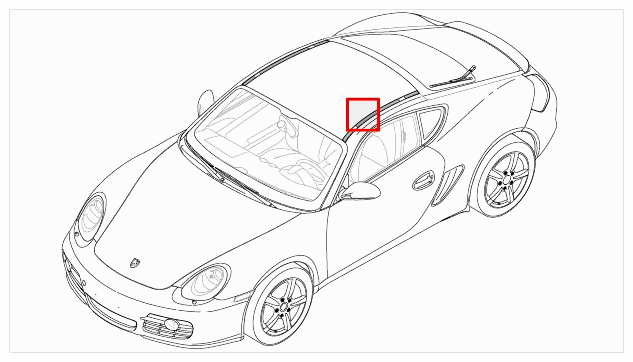

Assembling Roof Joint Cover Strip
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

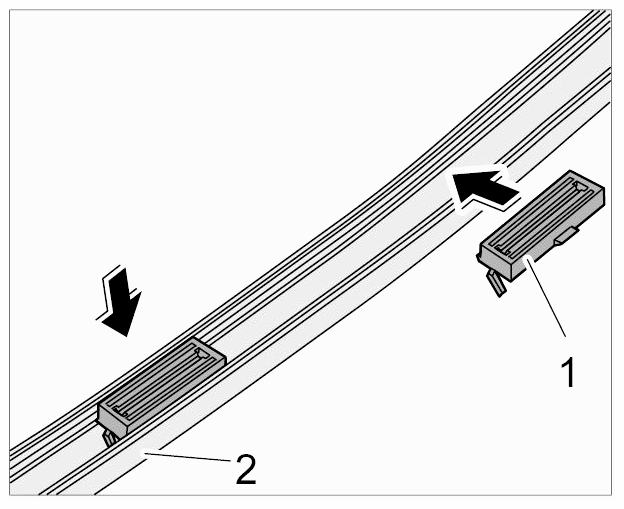

- Insert roof joint clips -1-
narrow side first, and press in until the locking tab in the roof joint cover strip -2-
engages.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
- Push the roof joint seal -1-
onto the roof joint strip -2-
all the way round.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

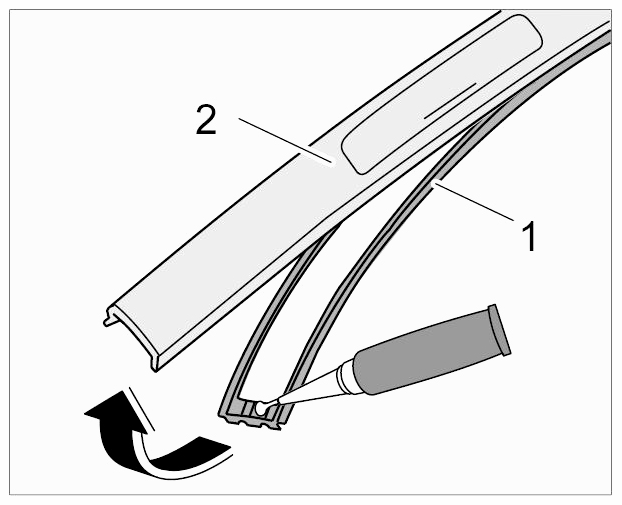

- Stick in the roof frame seal -1-
at the ends of the roof joint cover strip -2-
using Loctite 241 WE.

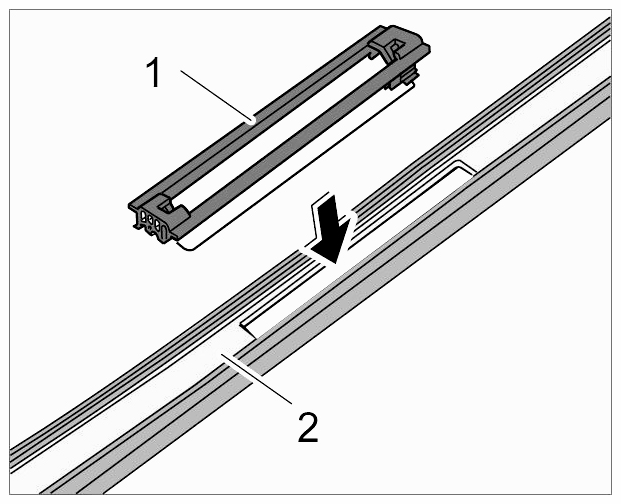

- Position the fold-out element -1-
in the cut-out of the roof joint strip -2-
, and press in the locking tabs at the ends until they engage.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
