Removing Side-Section Trim

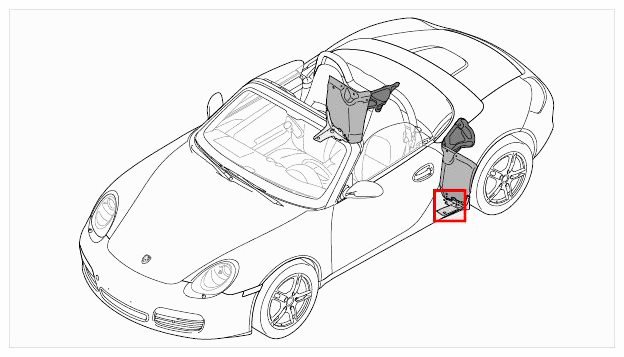

Fig 1: Identifying Side Trim Panel Installation Location
G09590950Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Unscrew fastening screws -1-  and remove side-section trim -2-  .

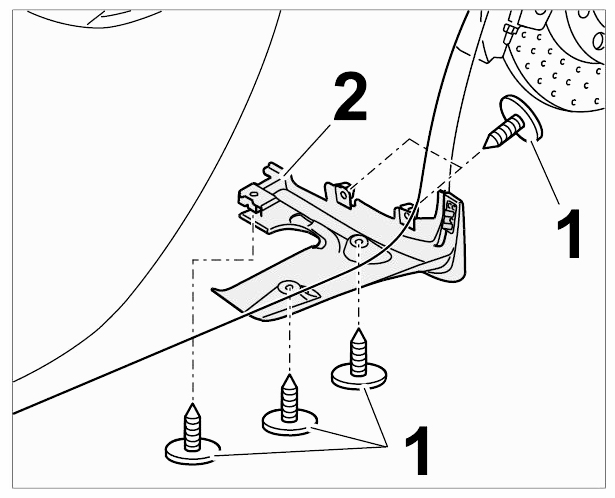

    Fig 2: Removing Side-Section Trim
    G09590951Courtesy of PORSCHE CARS NORTH AMERICA, INC.
