Installing Side-Section Trim

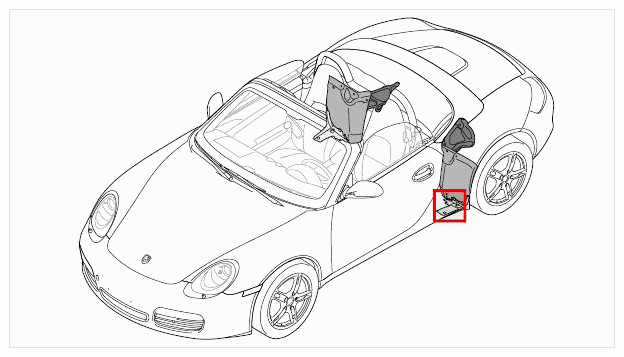

Fig 1: Identifying Side Trim Panel Installation Location

G09590952

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Check speed nuts -3- for deformation; replace speed nuts -3- if necessary.
Insert side-section trim -2- and push retaining clip -4- into side panel.
Screw in fastening screws -1- and tighten to tightening torque →: 1.5 ftlb. .

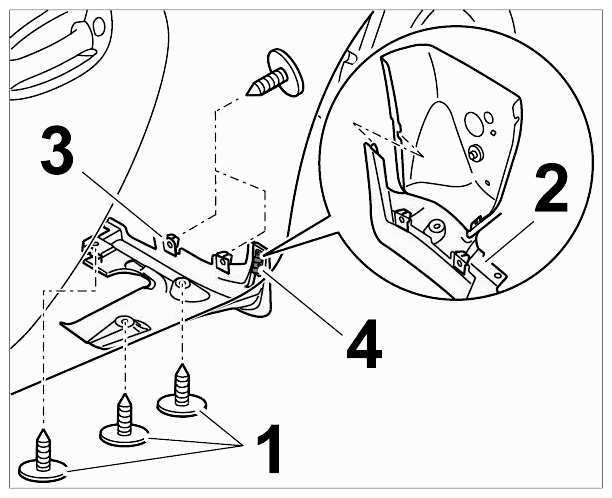

Fig 2: Installing Side-Section Trim

G09590953

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
