Removing Front Logo

  1. Open front lid.
  2. Unscrew fastening nuts -3-  .
  3. Remove logo -1-  and washer -2-  .

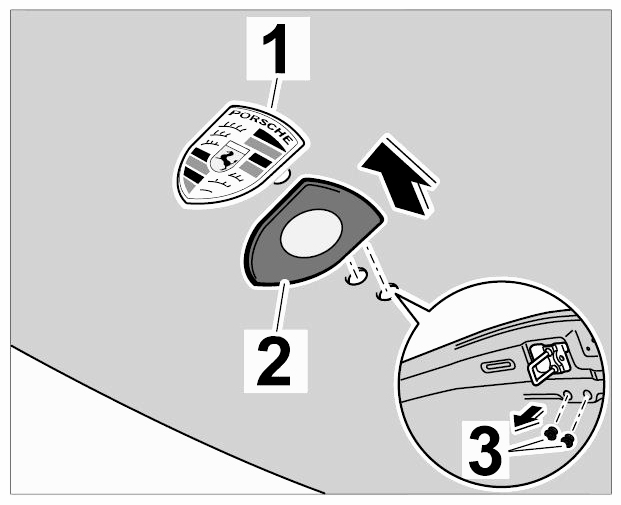

    4. Fig 1: Removing Front Logo
    G09590948Courtesy of PORSCHE CARS NORTH AMERICA, INC.
