Installing Front Logo

  1. Always replace fastening nuts -3-  . Insert base -2-  and logo -1-  into the lid and secure with new fastening nuts -3-  . → Tightening torque: 1.3 Nm (1.0 ftlb)

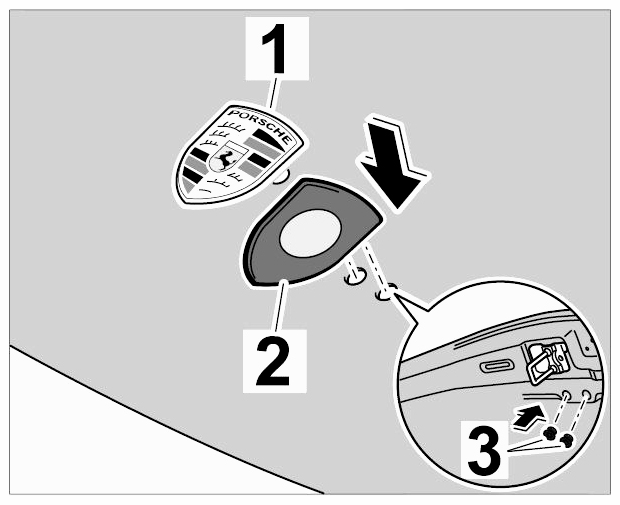

    Fig 1: Installing Front Logo
    G09590949Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Close front lid.
