Removing Front Outer Air Grille

  1. Press retaining clip -1-  up and out -arrow A-  .
  2. Unclip retaining clip -2-  from the air grille -3-  (-arrow B-  ).

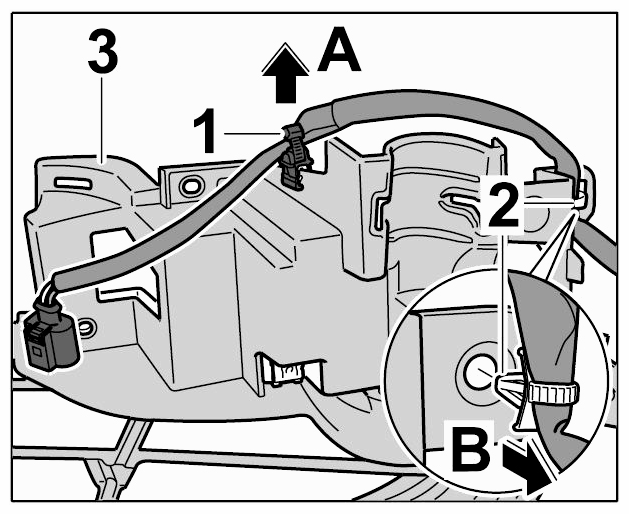

    3. Fig 1: Loosening Front Air Grille Wire Harness
    G09590942Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Insert a screwdriver between the front apron -1-  and air grille -2-  and release the locking lugs and remove the air grille at the same time -arrow-  .

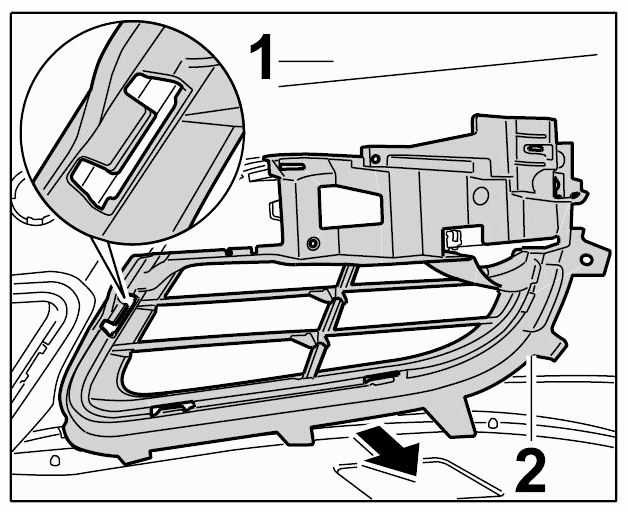

    Fig 2: Removing Air Grille
    G09590943Courtesy of PORSCHE CARS NORTH AMERICA, INC.
