Removing Front Centre Air Grille

  1. Insert a screwdriver between the front apron -1-  and air grille -2-  and release the locking lugs and remove the air grille at the same time -arrows-  .

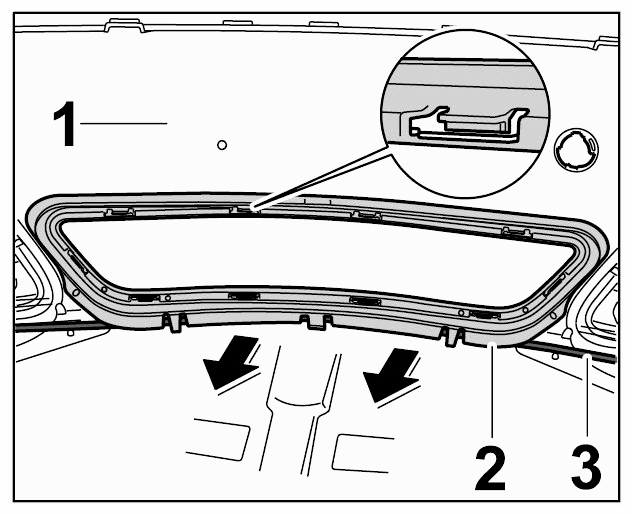

    Fig 1: Removing Air Grille
    G09590944Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Information

    • Only for vehicles with headlight cleaning system.
  2. Disengage the water hose -3-  from the air grille -2-  .
