Installing Front Outer Air Grille

  1. Position the air grille -2-  in the pins of the front apron -1-  all the way round -arrow-  .

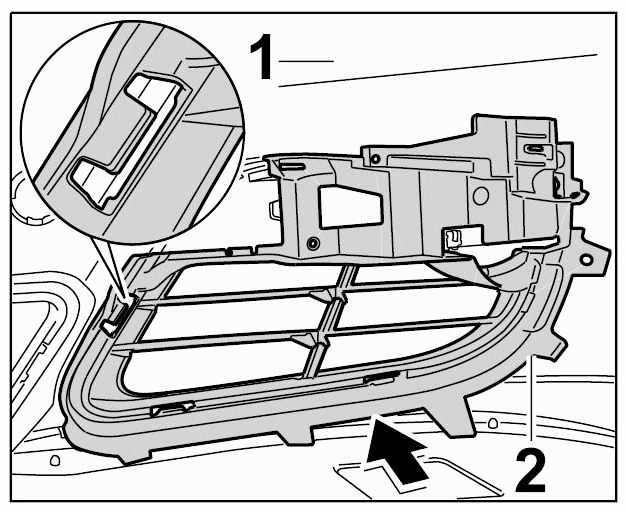

    Fig 1: Installing Air Grille
    G09590946Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Press the air grille -2-  into the front apron -1-  until the locking lugs engage securely.
  3. Clip in the retaining clip -2-  on the air grille -3-  (-arrow A-  ).
  4. Press in the retaining clip -1-  on the air grille -3-  (-arrow B-  ).

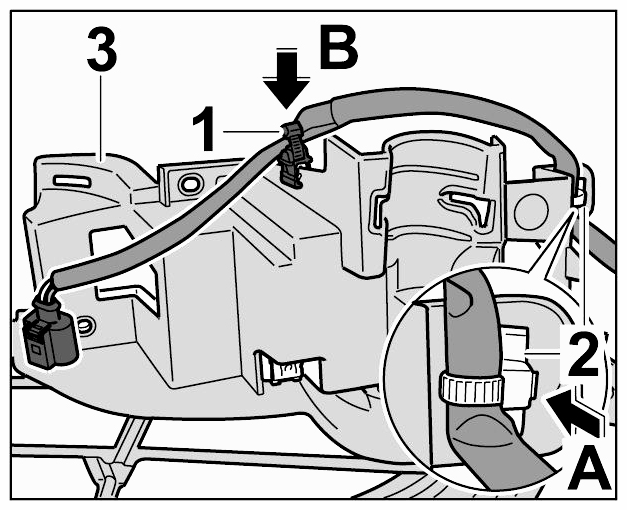

    5. Fig 2: Securing Front Outer Air Grille Wire Harness
    G09590947Courtesy of PORSCHE CARS NORTH AMERICA, INC.
