Installing Front Centre Air Grille

  1. Position the air grille -2-  in the pins of the front apron -1-  all the way round -arrows-  .
  2. Press the air grille -2-  into the front apron -1-  until the locking lugs engage securely.

    Information

    • Only for vehicles with headlight cleaning system.
  3. Engage the water hose -3-  on the air grille -2-  .

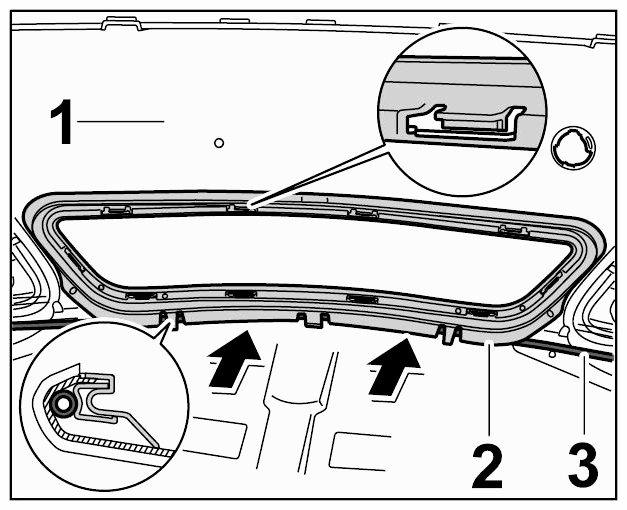

    4. Fig 1: Installing Air Grille
    G09590945Courtesy of PORSCHE CARS NORTH AMERICA, INC.
