Installing Front Spoiler

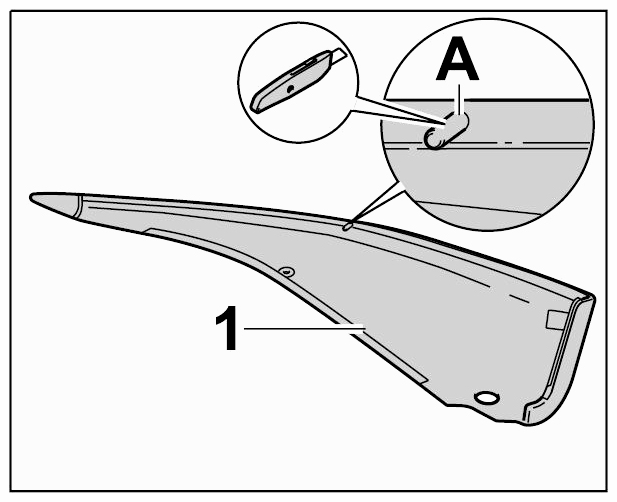

Cut off pins -A- on the new front spoiler -1- so that they are flush with the components.

Fig 1: Cutting Front Spoiler Pins
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Allow approx. 20 mm extra on top of the specified lengths as a pulling aid (protective film without adhesive tape). The pulling aid makes it easier to pull off the protective film when the front spoiler is fitted.
Get adhesive strips ready.
1. A= 160 mm + 20 mm
2. B= 255 mm + 20 mm
3. C= 355 mm + 20 mm

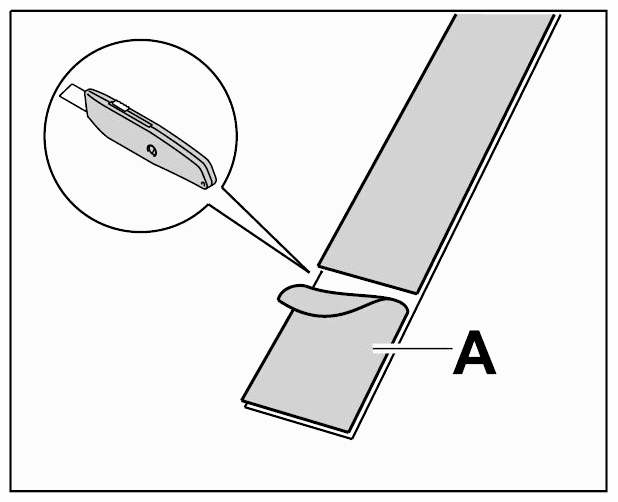

1. 2.1. Cut as much of the adhesive tape -A- as you need to pull it off the protective film.

  Fig 2: Identifying Front Spoiler Adhesive Strips
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

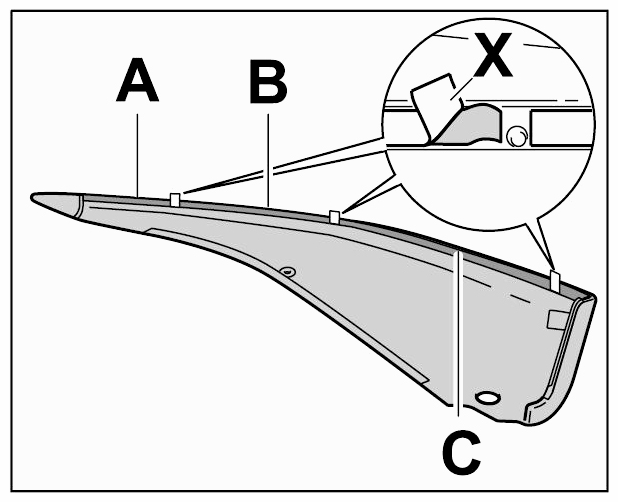

Stick strips of adhesive tape on the front spoiler according to the designations -A, B, C- .
Place the pulling aids -X- over the edge of the front spoiler.

Fig 3: Identifying Front Spoiler Adhesive Tape
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

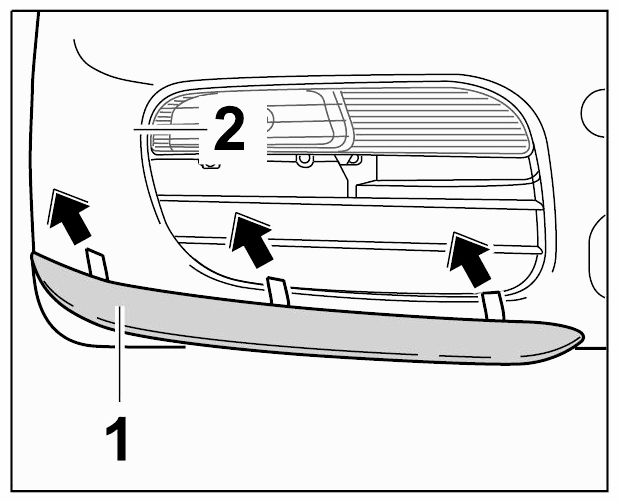

Position front spoiler -1- on the front apron -2- (-arrows- ).

Fig 4: Positioning Front Spoiler
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

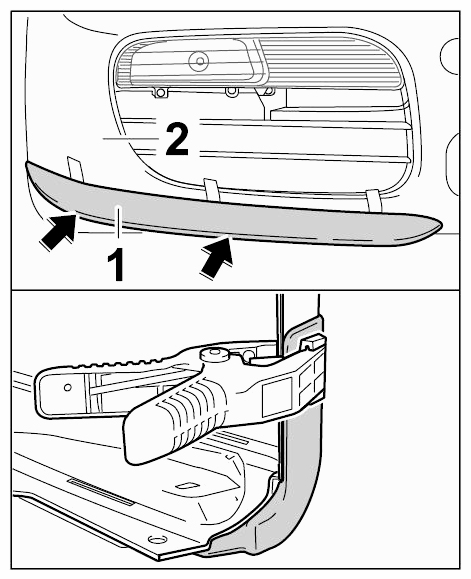

Fix the front spoiler -1- in place using clamping pliers.
Carefully pull out the pull tabs on the adhesive tape between the front spoiler -1- and front apron -2- (-arrows- ).

Fig 5: Securing Front Spoiler
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Heat the front spoiler -1- slightly with the hot-air blower and press it on.

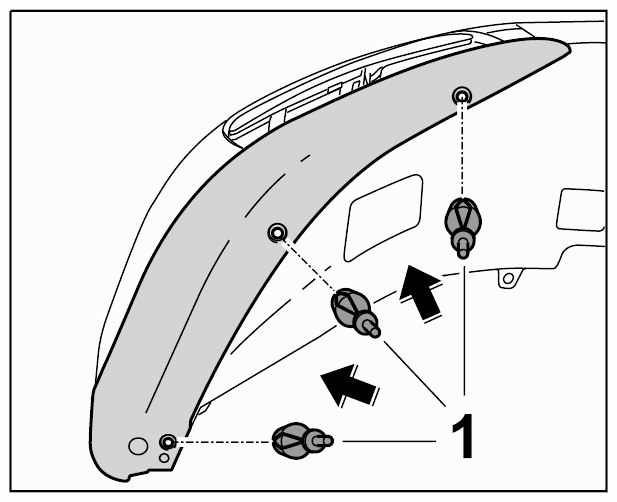

Secure the front spoiler using the expanding clips -1- by pressing in -arrows- the locking pins.

Fig 6: Securing Front Spoiler
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
