Component arrangement

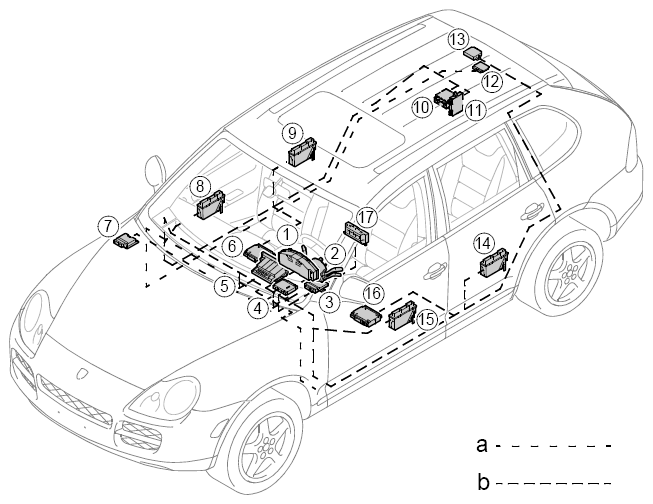

Fig 1: Identifying Vehicle Electrical System Component Arrangement
G05373377Courtesy of PORSCHE OF NORTH AMERICA, INC.
  1. CAN drive (CAN-C)
  2. CAN comfort (CAN-B)
  1. Instrument cluster
    • Integrated into dashboard
  2. Steering column switch
    • On the steering column under the steering wheel
  3. KESSY control module
    • Located on right side of steering column (footwell) near vehicle electrical system control module
  4. Vehicle electrical system control module
    • Located on right side of steering column (footwell) near KESSY control module
  5. Air-conditioning system regulator control module
    • Integrated into front center console
  6. Memory seat adjustment control module, passenger's
    • Located under passenger's seat
  7. DME control module
    • Located in right radiator tank, above hydraulic unit with PSM control module
  8. Passenger's door control module
    • Integrated into passenger's door
  9. Rear right door control module
    • Integrated into rear right door
  10. Rear convenience system control module
    • Located above the rear right wheel housing
  11. AHK (Trailer Hitch) control module
    • Located above the rear right wheel housing
  12. Level control module
    • Located between rear right wheel housing and closing panel
  13. Panorama roof system (PDS)
  14. Rear left door control module
    • Integrated into rear left door
  15. Driver's door control module
    • Integrated into driver's door
  16. Memory seat adjustment control module, driver's
    • Located under driver's seat
  17. Air-conditioning system regulator control module, rear
    • Integrated into rear center console
