Removing Front Cardan Shaft

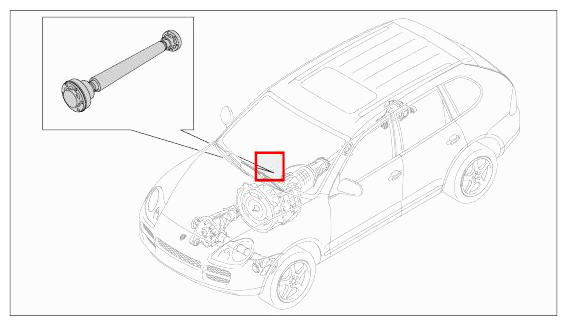

Fig 1: Overview Of Cardan Shaft

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

• To unscrew the cardan shaft bolts, a second fitter should sit in the vehicle and block the drive train by actuating the foot brake.
• The colour markings, match points -arrows- on the cardan shaft and on the all-wheel final drive flange must be aligned. This will neutralise the residual imbalance of the components.
• Apply another colour marking if necessary.

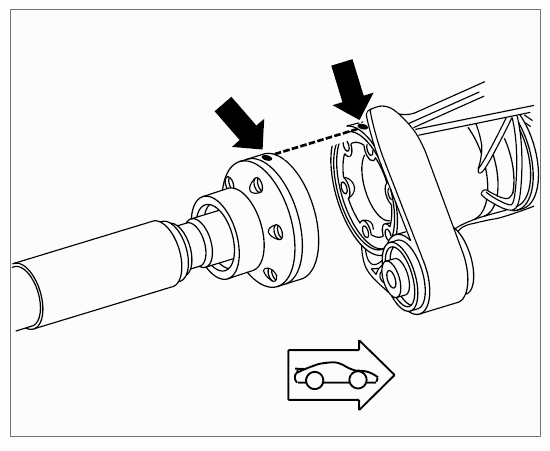

  Fig 2: Locating Match Points On Front Cardan Shaft To Front Final Drive

  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

If the cardan shaft is to remain removed, the transmission crossmember must be refitted.

1. Remove cardan shaft at the transfer gear -arrow-  .

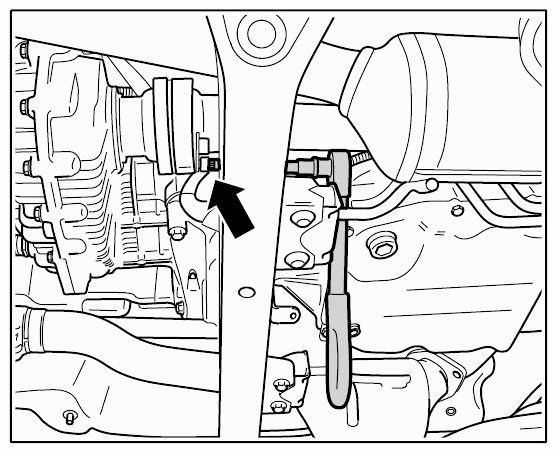

   Fig 3: Removing Front Cardan Shaft From Transfer Gear

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Remove cardan shaft at the all-wheel final drive.

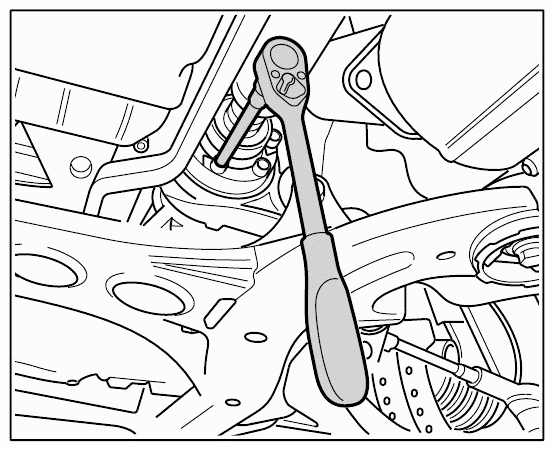

   Fig 4: Removing Front Cardan Shaft From All-Wheel Final Drive

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Support transmission with material 00000  and secure with a retaining strap.
4. Unscrew fastening screws securing exhaust system to cross member -3-  and threaded joint securing holder to body.
   Fig 5: Identifying Exhaust System To Cross Member Fastening Screws

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
5. Unscrew threaded joint securing transmission cross member to body -2-  .

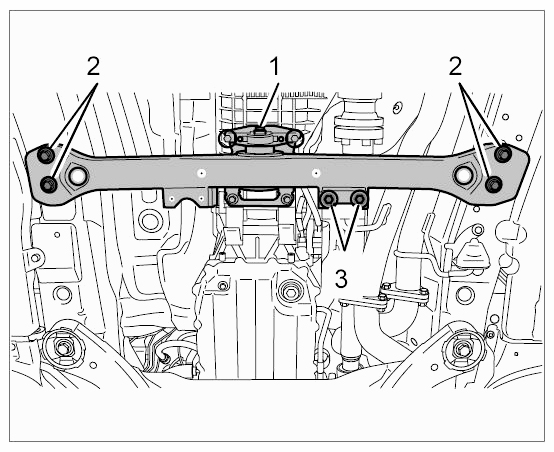

   Fig 6: Identifying Transmission Cross Member To Body Threaded Joint

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
6. Unscrew two screws on the cross member -1-  at the transfer gear holder and remove transmission cross member.

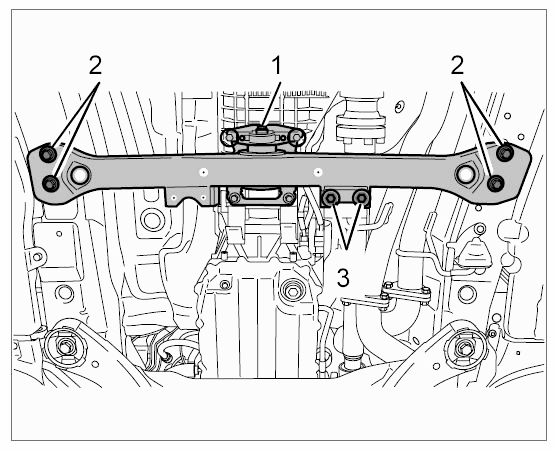

   Fig 7: Identifying Cross Member Screws

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
7. Remove cardan shaft between ATF pan and exhaust system holder -arrow-  .

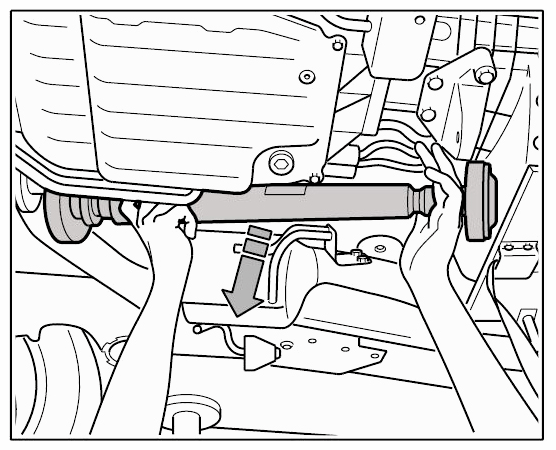

   Fig 8: Removing Cardan Shaft

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
