Installing Transmission

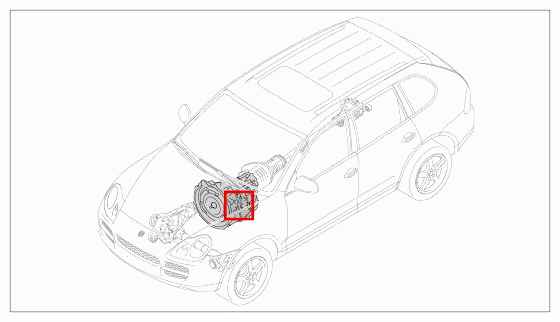

Fig 1: Identifying Transmission Installation Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

→ Let the fluid cool down.

→ Wear personal protective gear.

Information

• The adaptation values must be reset using the Porsche System Tester when the transmission is renewed/replaced. Code Tiptronic control unit → Coding the Tiptronic control unit.

Information

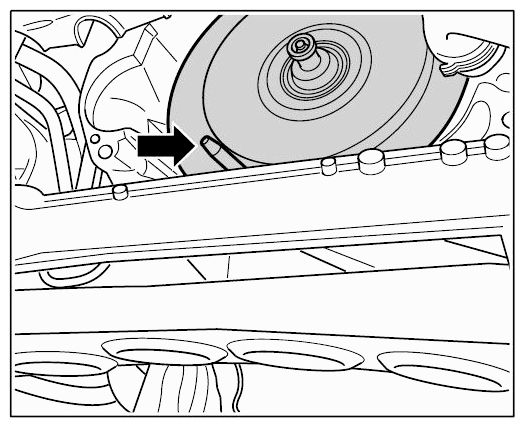

• To position the converter to the screwed opening in the driver plate, insert special tool centring pin into -Arrows- converter and move transmission in.
  Fig 2: Locating Centering Pin On Converter

  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

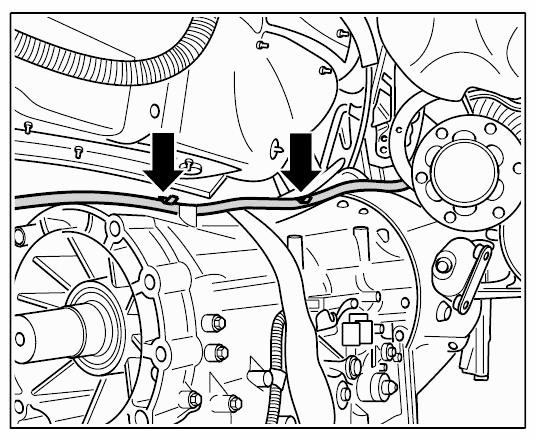

1. Run in transmission. Connect vent line -arrows-  for the transfer gear and insert special tool centring pin 9689 into the converter.
   Fig 3: Locating Vent Line On Transmission

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Screw in fastening screws used to secure transmission to engine. This involves screwing in four screws on the engine side and six on the transmission side.
   1. -1-  - → Tightening torque: 80 Nm (59 ft lbs.)
   2. -2a-  - → Tightening torque: 80 Nm (59 ft lbs.)
   3. -2-  - → Tightening torque: 80 Nm (59 ft lbs.)
   4. -3-  - → Tightening torque: 45 Nm (33 ft lbs.)
   5. -4-  - → Tightening torque: 80 Nm (59 ft lbs.)
   6. -5-  - → Tightening torque: 80 Nm (59 ft lbs.)

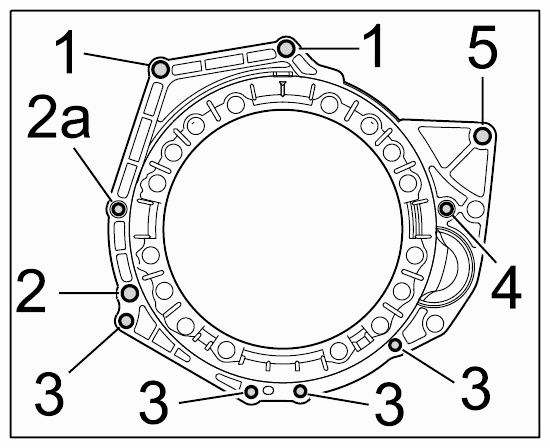

   Fig 4: Identifying Fastening Screws On Transmission To Engine

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Install transfer gear. → Installing transfer gear
4. Screw in new converter screws through the opening in the starter using special tool 3/8" - 5/16" bit connector and Torx T55 bit screwdriver insert Nr.42-1.  → Tightening torque: 85 Nm (63 ft lbs.)
   Fig 5: Locating Starter Opening With Converter Screw

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
5. Turn the crankshaft further for the next converter screw using a socket-wrench insert 9714.
   Fig 6: Turning Crankshaft Using Socket-Wrench Insert 9714

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

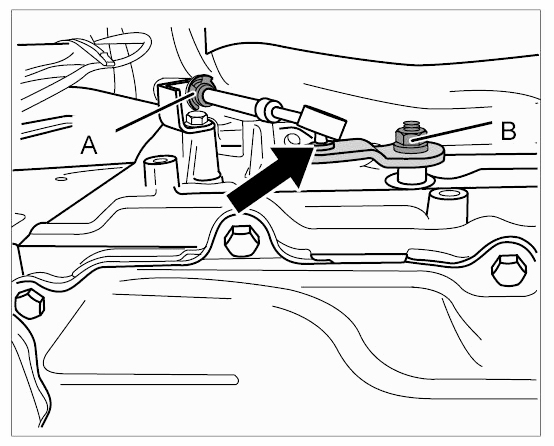

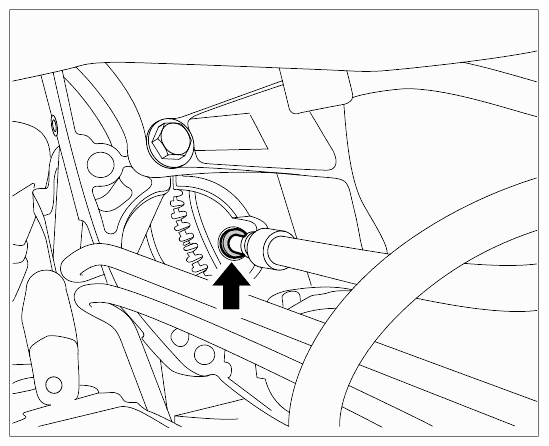

6. Attach safety clip -A-  to the selector lever cable and press cable on to the ball head -arrow-  .
   Fig 7: Locating Cable Connection To Transmission

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
7. Press selector lever cable connection on to ball head -arrow-  .

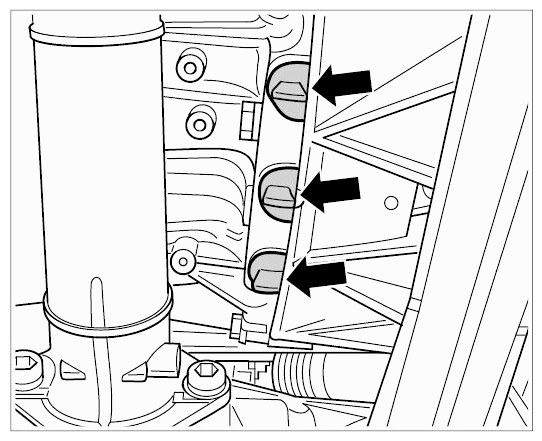

8. Fit sealing caps -2-  into the converter bell housing from below.
   Fig 8: Locating Caps On Bottom Of Converter Bell Housing

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

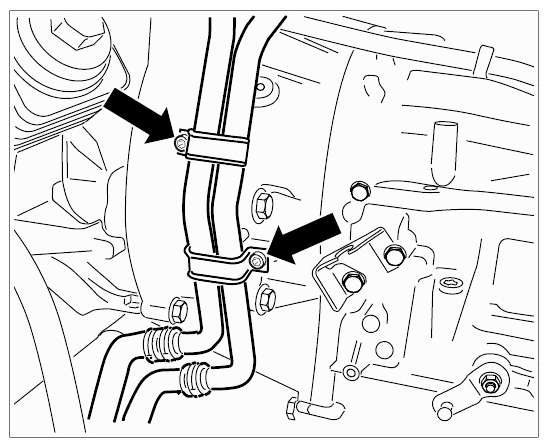

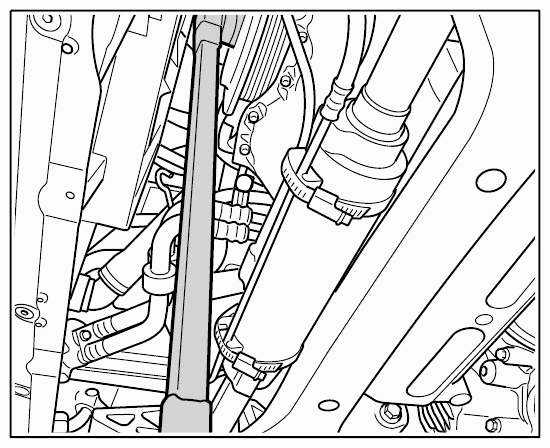

9. Screw in coolant pipe fastening screws on converter bell housing -arrows-  . → Tightening torque: 9 Nm (6.5 ft lbs.)
   Fig 9: Locating Coolant Pipes On Converter Bell Housing

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

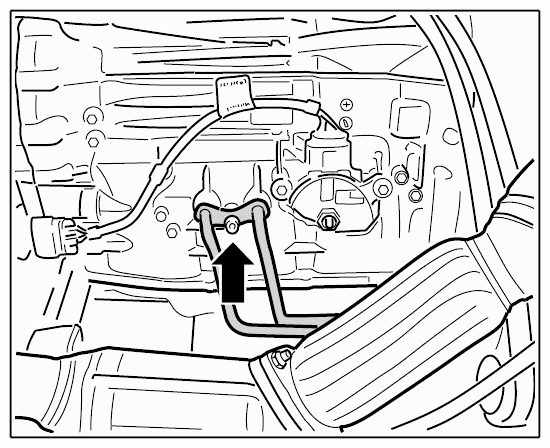

10. Screw in fastening screw securing ATF line to transmission -arrow-  . → Tightening torque: 25 Nm (19 ft lbs.)
    Fig 10: Locating ATF Line On Transmission

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.
11. Attach ATF line holder to converter bell housing. → Tightening torque: 10 Nm (7.5 ft lbs.)
12. Install starter → Installing The Starter .

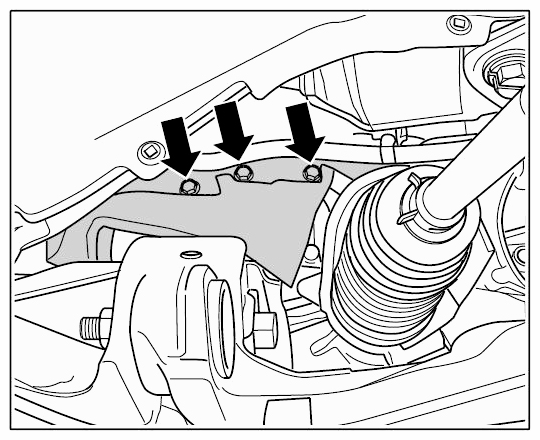

13. Screw in fastening screws -arrows-  used to secure heat shields to transmission. → Tightening torque: 10 Nm (7.5 ft lbs.)
    Fig 11: Locating Fastening Screws On Heat Shield Transmission

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

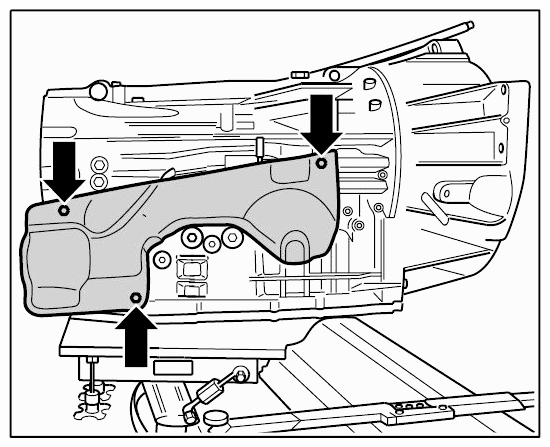

14. Install heat shield on all-wheel final drive -arrows-  . → Tightening torque: 10 Nm (7.5 ft lbs.)
    Fig 12: Locating Heat Shield Fastening Screws On All-Wheel Final Drive

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

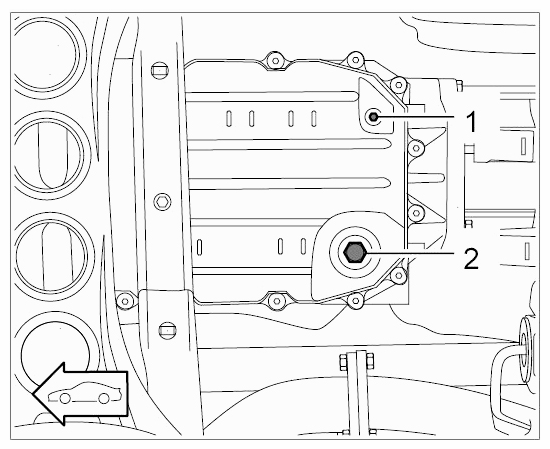

15. Unscrew ATF inspection plug -2-  and fill in ATF until a constant discharge is visible at the lifting tube.
    Fig 13: Identifying Oil Drain And Inspection Plug

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.
16. Screw in ATF inspection plug -A-  . → Tightening torque: 70 Nm (52 ft lbs.)
