Removing Seat-Belt Buckle

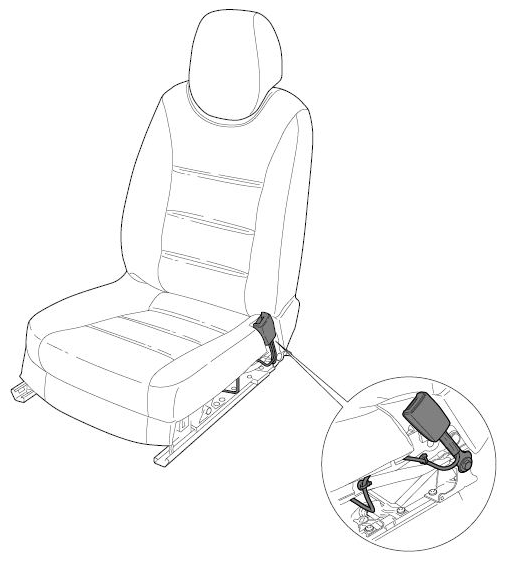

Fig 1: Identifying Seat-Belt Buckle

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Move front and rear of seat to highest position.
Information

After disconnecting the battery, route or insulate the ground strap to prevent any contact with a ground carrier. → WM 9000IN WORK INSTRUCTIONS AFTER DISCONNECTING THE BATTERY (ALL MODELS)
Remove front seat. → Removing Front Seat

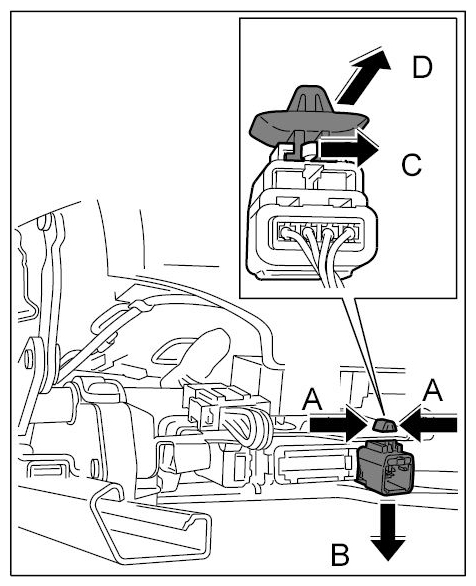

Press together the locking tabs of the clip -Arrows A- and pull out the plug, together with the clip, in a downward direction -arrow B- .

Fig 2: Pressing Together Locking Tabs Of Clip
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Press the locking tab to the side -arrow C- and remove the plug from the clip -arrow D- .

Fig 3: Removing Plug From Clip
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

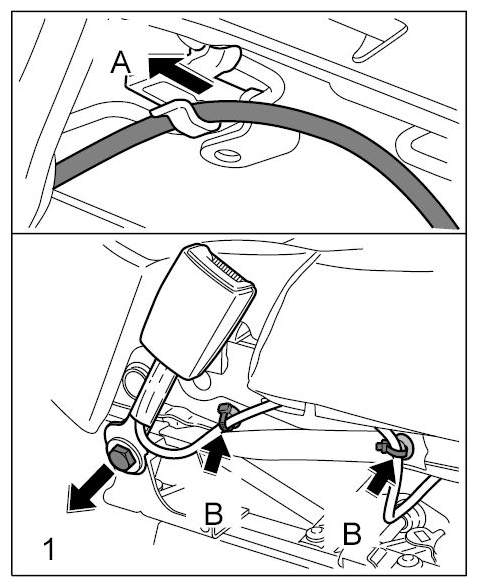

Remove cable from the bracket -arrow A- .

Fig 4: Removing Cable From Bracket
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

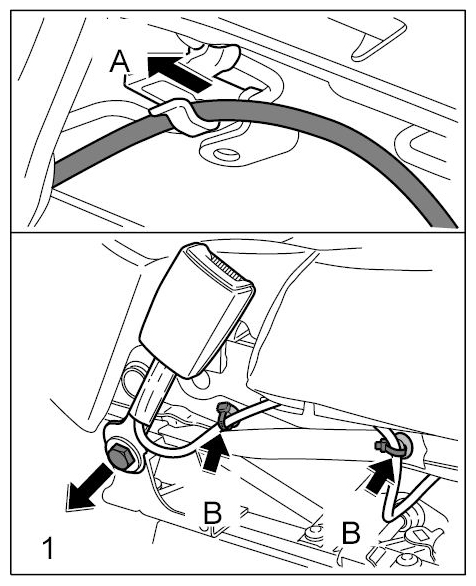

Separate the two tie-wraps -B- and unscrew the fastening screw -1- .

Fig 5: Locating Tie-Wraps
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
