Removing Air Vent At Door

  1. Open the doors and run a plastic spatula between the cover and dashboard and remove the cover.

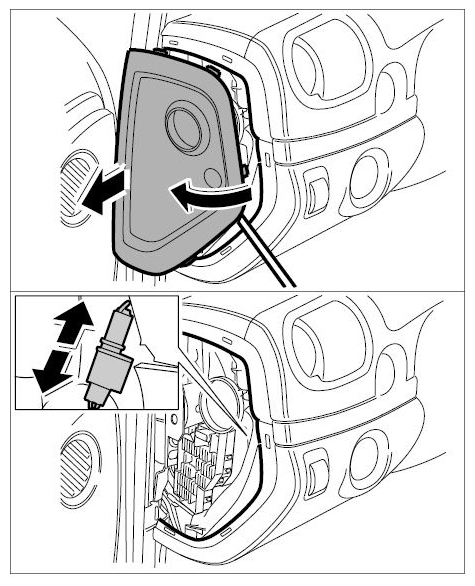

    Fig 1: Disconnecting Plug Connection
    G09414450Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Unlock and disconnect the electrical plug connection.
  3. Carefully insert plastic spatula from the side between air vent and instrument panel, and lever air vent out.

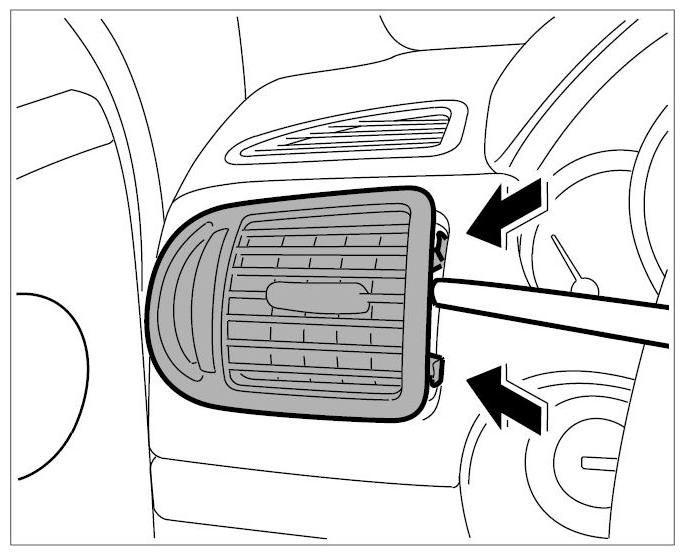

    Fig 2: Locating Air Vent
    G09414451Courtesy of PORSCHE CARS NORTH AMERICA, INC.
