Removing Heater/Air-Conditioning Unit

→ Disconnect the battery.

→ Prevent battery from reconnecting.

→ Cover the battery.

→ Remove ground terminal and cover the terminals.

→ Route electric lines without tensile strength.

→ Secure electric lines to existing lines/components.

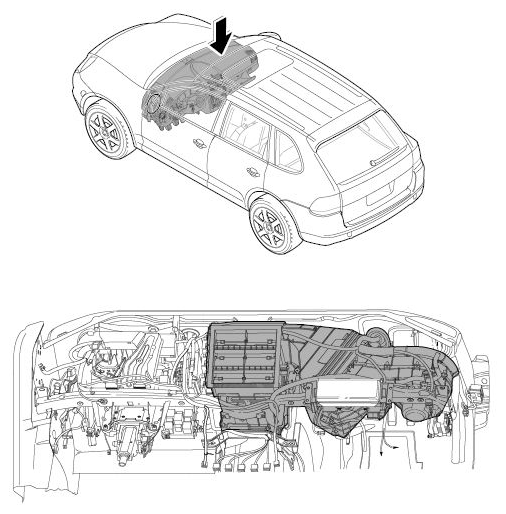

Fig 1: Overview Of Heater/Air-Conditioning Unit

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

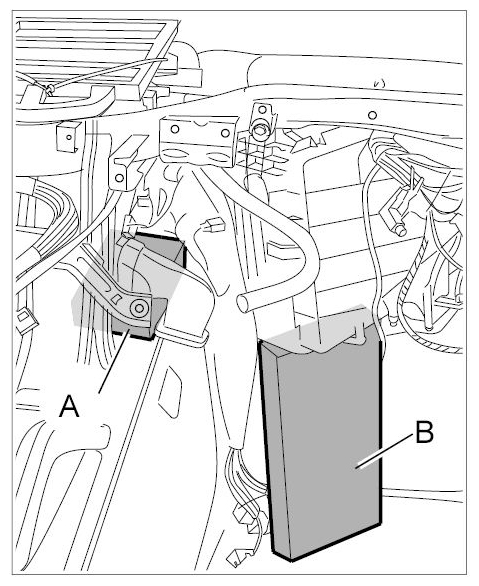

1. Support the heater/air-conditioning unit under the centre section -A-  and under the evaporator -B-  with a plastic or wooden board.
   Fig 2: Identifying Heater/Air-Conditioning Unit

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Unclip wiring harness on the left heat exchanger cover.
   Fig 3: Unclipping Left Heat Exchanger Cover Wiring Harness

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

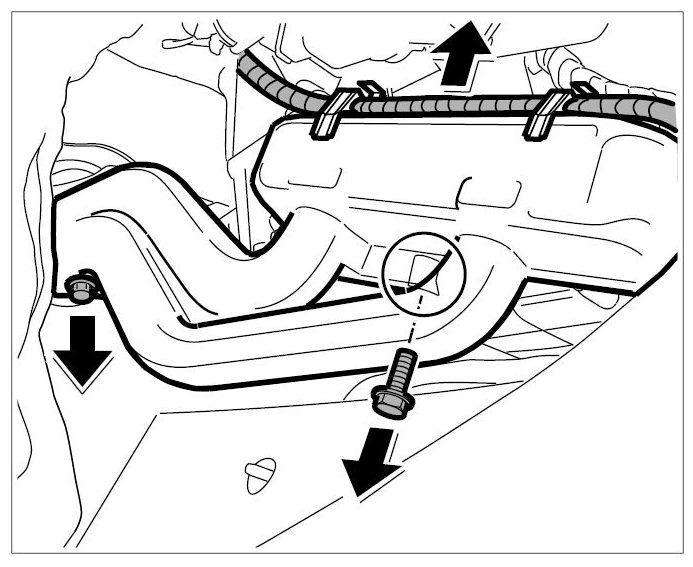

3. Unscrew both fastening screws on the left heat exchanger cover and unclip the cover.

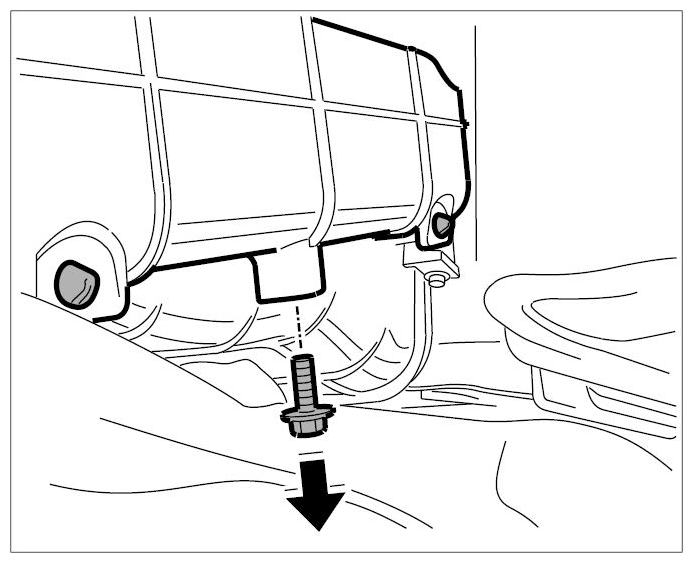

4. Unscrew the fastening screw of the right heat exchanger cover and unclip the cover.
   Fig 4: Removing Right Heat Exchanger Cover Fastening Screw

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

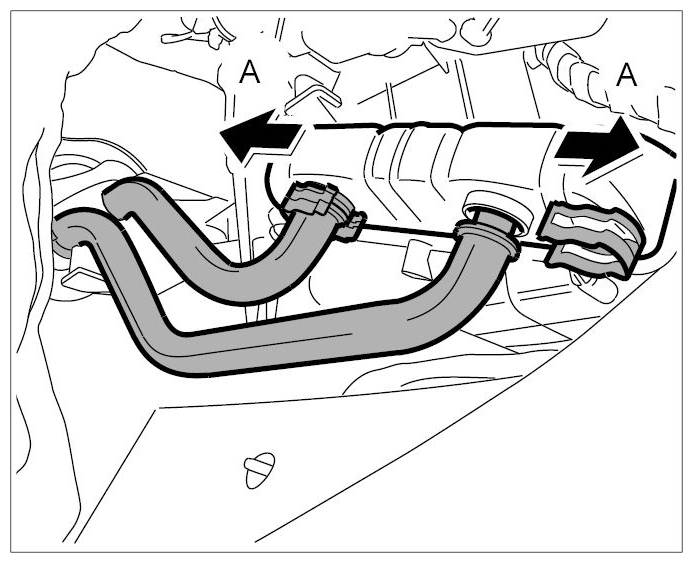

5. Pull the retaining clips -arrows A-  off the coolant supply line and return line.
   Fig 5: Pulling Off Retaining Clips On Coolant Lines

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Information

   • Line the driver's footwell with very absorbent material.
6. Pull the interior carpet away from the coolant lines and place a suitable collecting container in position.
   Fig 6: Pulling Interior Carpet Away From Coolant Lines

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

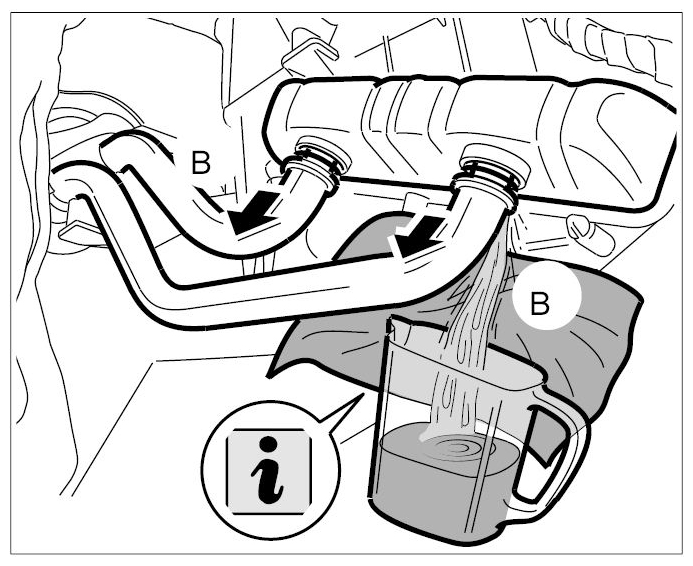

7. -arrows B-  Slowly pull out the lines from the heat exchanger and drain the coolant into the collecting container.

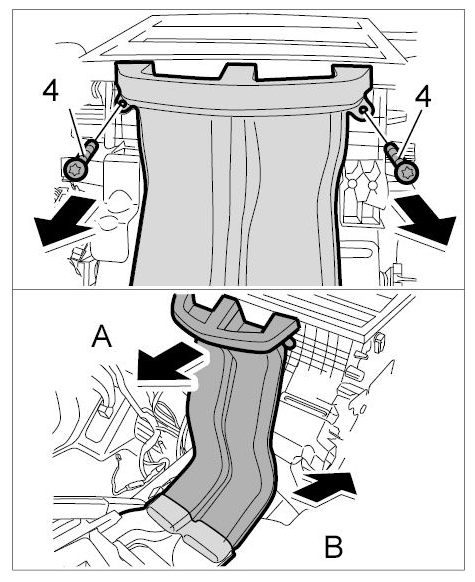

8. Unscrew both centre air guide fastening screws -4-  for the back seat area and pull out the upper air guide toward the rear -arrow A-  and the lower one toward the front -arrow B-  .
   Fig 7: Releasing Centre Air Guide

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

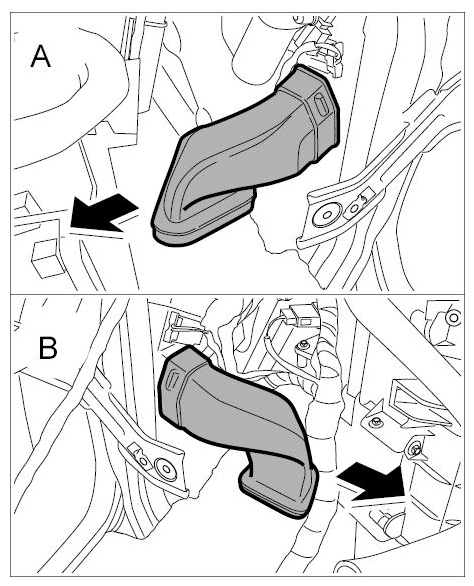

9. Pull out centre air vents on the left -A-  and right -B-  .
   Fig 8: Removing Left And Right Air Vents

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

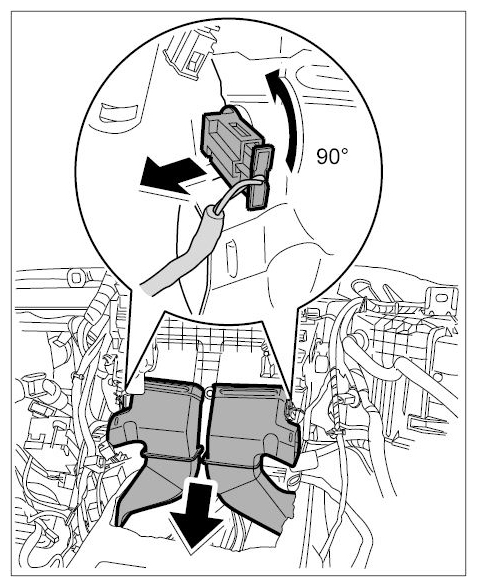

10. Turn the left and right temperature sensor -90°-  and pull out of the heater/air-conditioning unit.
    Fig 9: Releasing Temperature Sensor

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.
11. Pull the centre air vents for the footwell downwards from the heater/air-conditioning unit, lift it toward the rear, and pull it out of the air vents for the footwell.

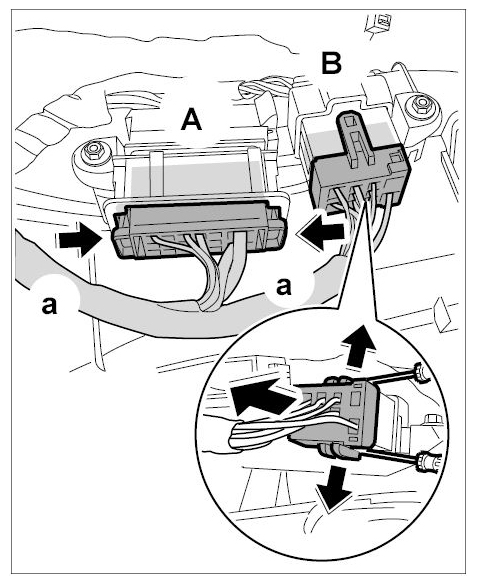

12. Release the electric central connector -A-  (-arrows a-  ), lever apart the connector lock -B-  with two screwdrivers and pull off.
    Fig 10: Pulling Off Electric Central Connector

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Information

    • Make sure not to damage the insulation of the main wiring harness.

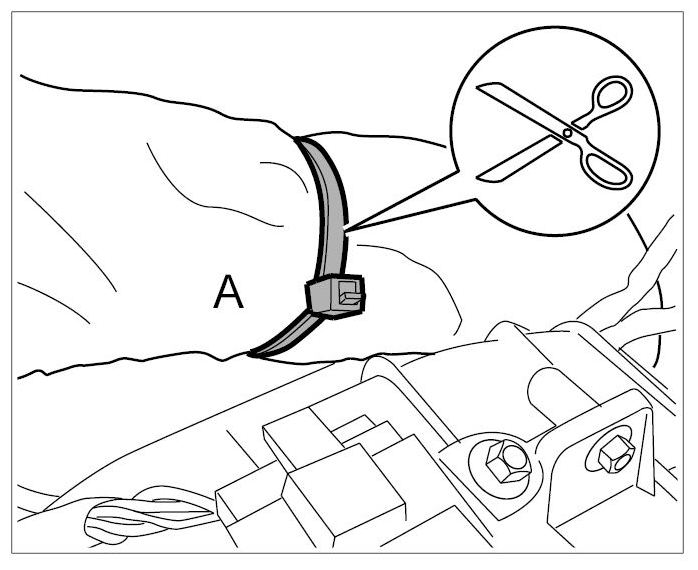

13. The main wiring harness is secured to the heater/air-conditioning unit with tie-wraps. Separate the tie wraps carefully with side cutters.
    Fig 11: Cutting Through Main Wiring Harness Tie-Wraps On Heater/Air-Conditioning Unit

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

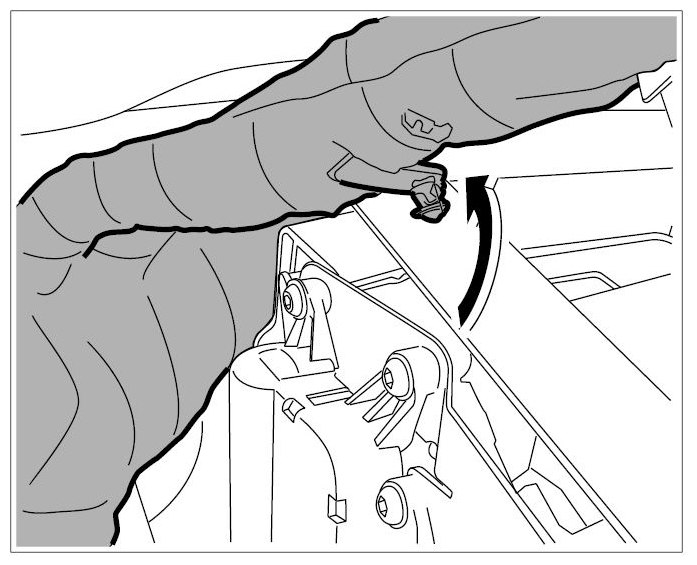

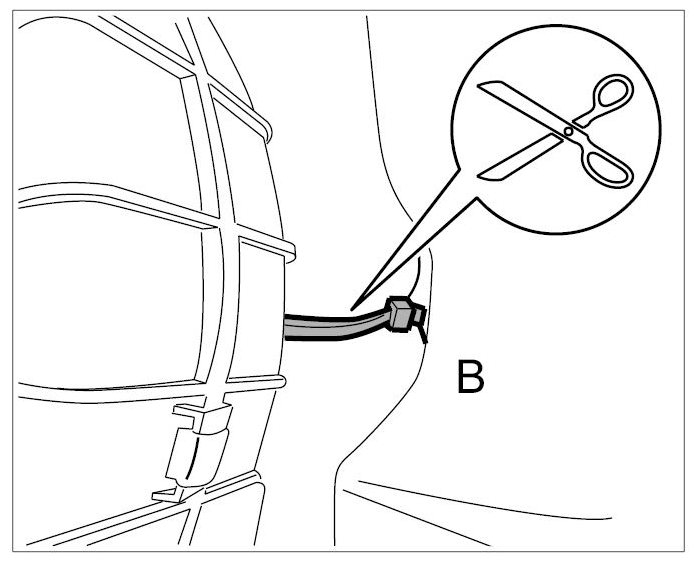

14. The main wiring harness runs along the right A-pillar and is secured to the heater/air-conditioning unit in the fan area with a tie-wrap. Separate the tie wrap carefully with side cutters.
    Fig 12: Cutting Through Tie-Wrap In Fan Area

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

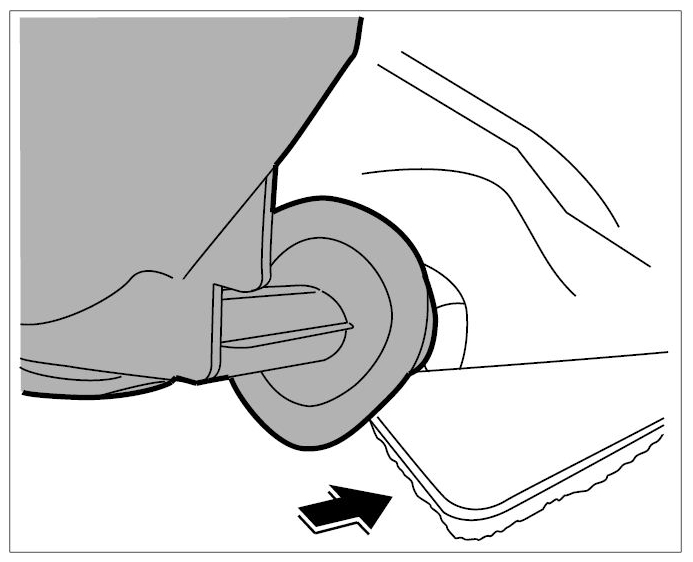

15. Disconnect the water drainage hose from the air-conditioning unit.
    Fig 13: Disconnecting Water Drainage Hose From Air-Conditioning Unit

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.
16. Detach the main wiring harness on the heater/air-conditioning unit.
    Fig 14: Detaching Main Wiring Harness On Heater/Air-Conditioning Unit

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.
17. Grasp the heater/air-conditioning unit on the left and right, pull backwards about 5 cm and remove completely.
