Mounting Transmission

WARNING: This page is about a different variant/trim than selected.

Secure the shift and selector cables to the ball head joint on the support.

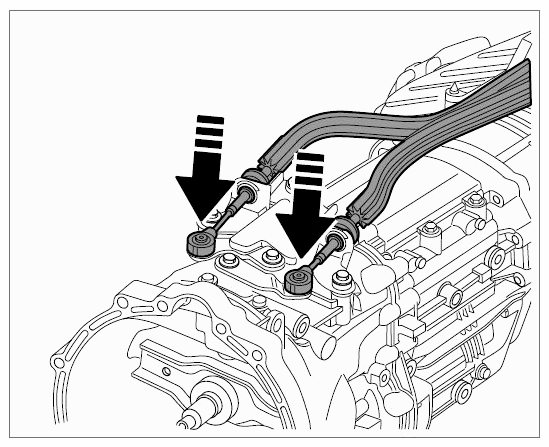

Fig 1: Securing Shift And Selector Cables To Ball Head Joint On Support
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Install circlips -inset- on support on the transmission.

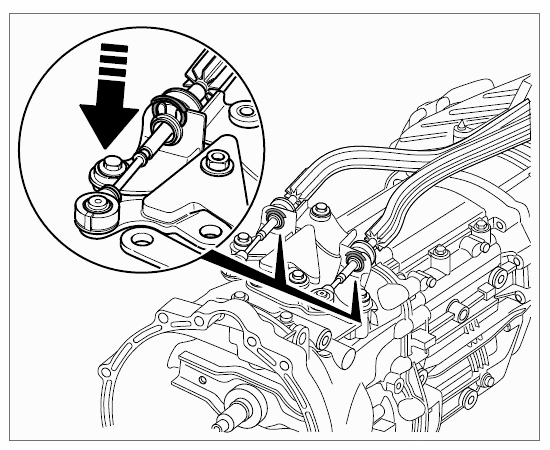

Fig 2: Installing Circlips Support On Transmission
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

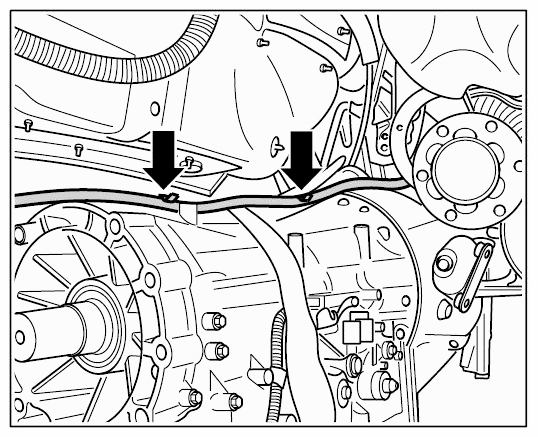

Connect the vent line for the transfer gear on the transmission.

Fig 3: Locating Vent Line Holder
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Attach transmission with support suspending device 2024 a on workshop crane.

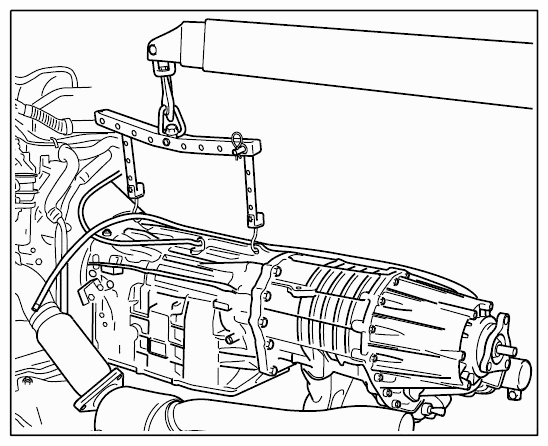

Fig 4: Attaching Transmission With Support Suspending Device 2024
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Mount transmission.
Screw in fastening screws for securing transmission to engine. This involves screwing in four screws on the engine side and six on the transmission side.

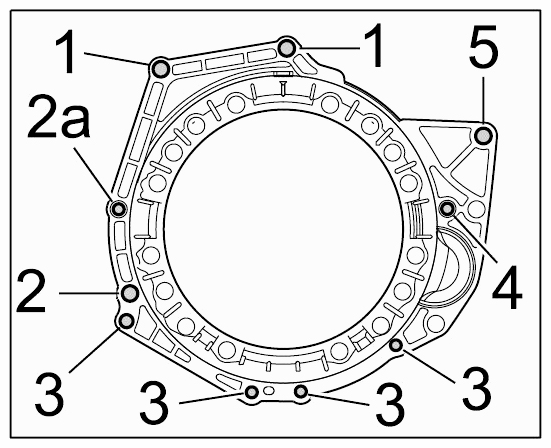

Fig 5: Identifying Transmission Fastening Screws To V6 Engine Threaded Joint Points
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information
- Screws which are tightened with a torque angle must be replaced with new ones.
Raise transmission a few centimeters and install transmission cross member on support. -A- → Initial tightening: 50 Nm (37 ftlb.) → Final tightening: 90°

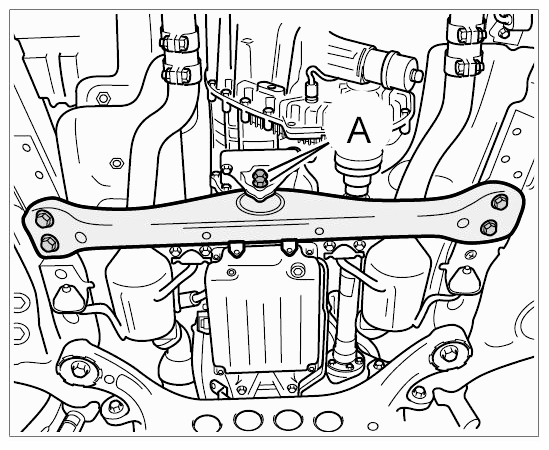

Fig 6: Identifying Transmission Cross Member
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
