Removing Transmission

Information

• The cables do not have to be separated from the transmission in order to remove the transmission.

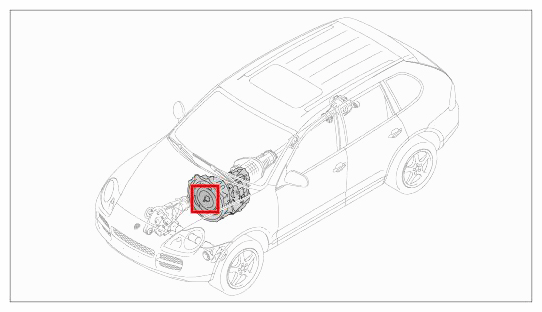

Fig 1: Overview Of Transmission

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Remove insulating mat.

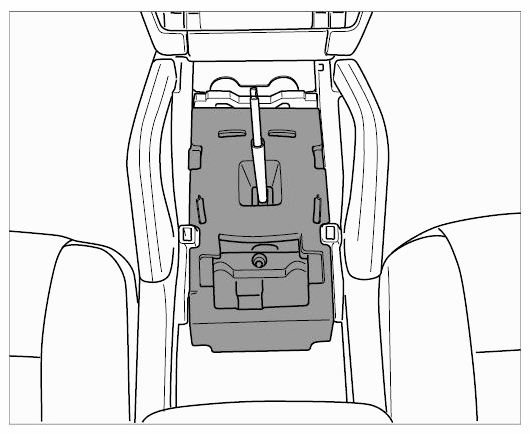

   Fig 2: Insulating Mat For Centre Console

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

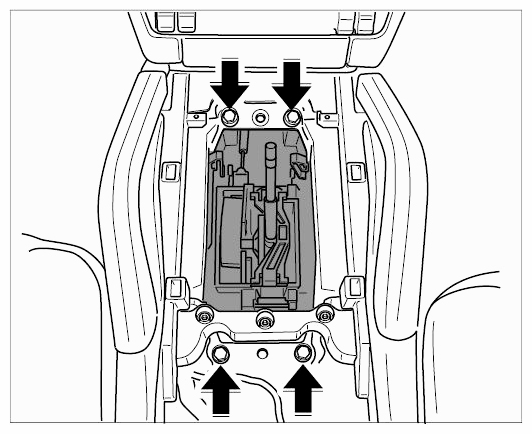

2. Unscrew fastening screws for securing bottom section of gearshift bracket to body.
   Fig 3: Locating Gearshift Bracket Fastening Screws

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Unscrew coolant pipe fastening screws on converter bell housing.

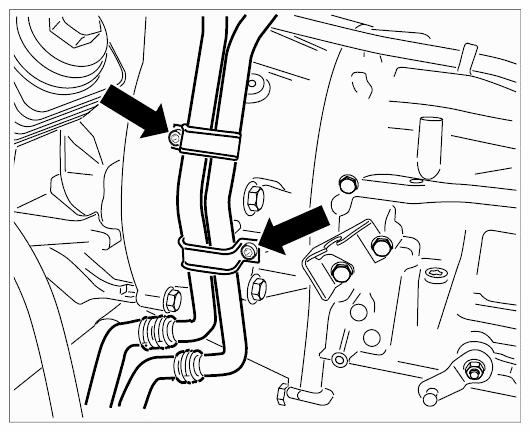

   Fig 4: Locating Support For Coolant Pipes

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Information

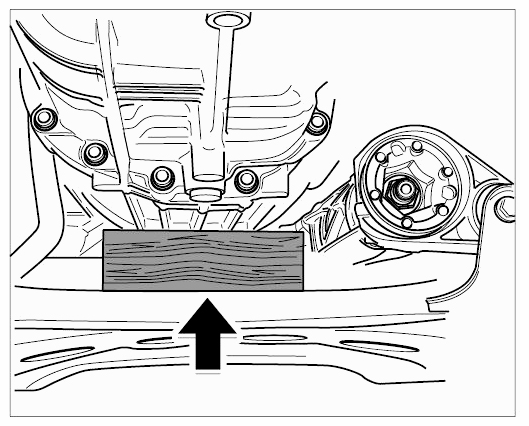

   • When removing the transfer box, support manual transmission with a wooden block on the suspension sub-frame.
     Fig 5: Supporting Manual Transmission With Wooden Block On Suspension Subframe

     Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. Remove transfer box. → Removing transfer gear

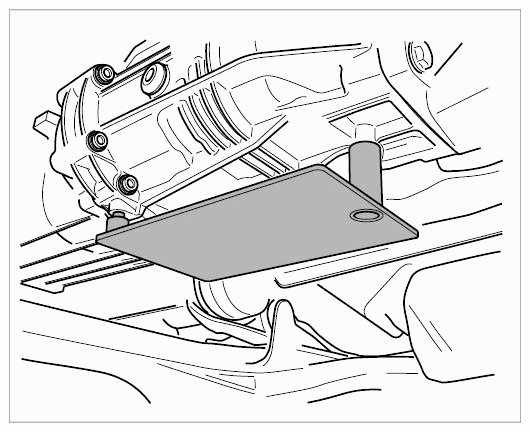

5. Support manual transmission with special tool plate  and transmission jack  .
   Fig 6: Identifying Manual Transmission With Special Tool Plate

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

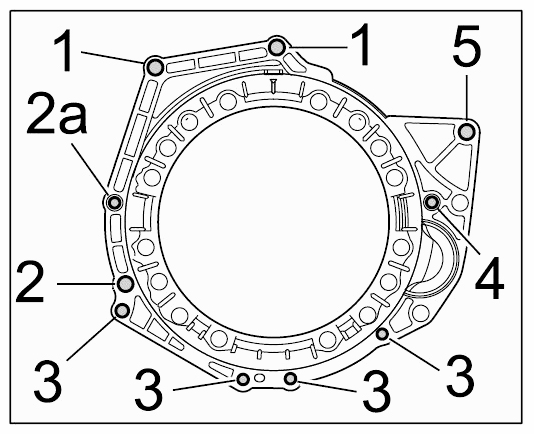

6. Unscrew fastening screws for securing transmission to engine. This involves unscrewing four screws on the engine side and six on the transmission side.
   Fig 7: Identifying Transmission Fastening Screws To V6 Engine Threaded Joint

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

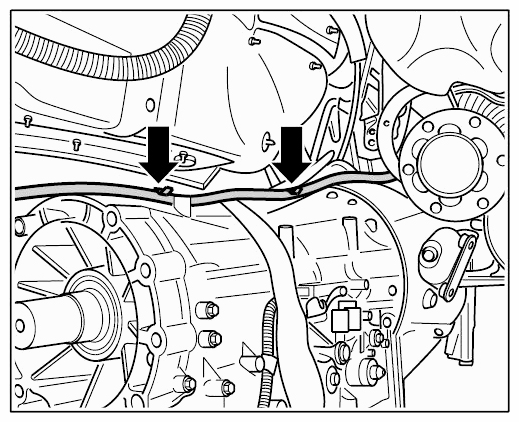

7. Push out transmission. Pull off vent line for the transfer box.
   Fig 8: Locating Support For Transmission Vent Line

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

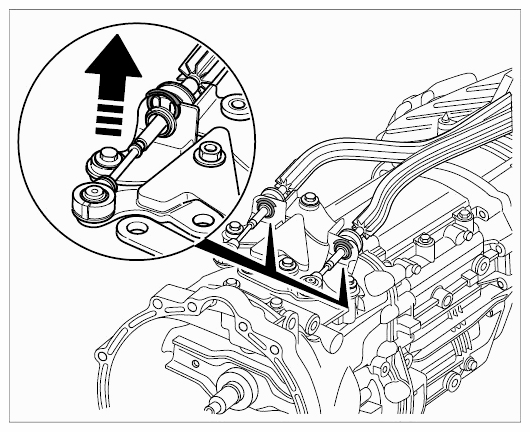

8. Remove circlips on support on the transmission.
   Fig 9: Removing Of Circlips

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

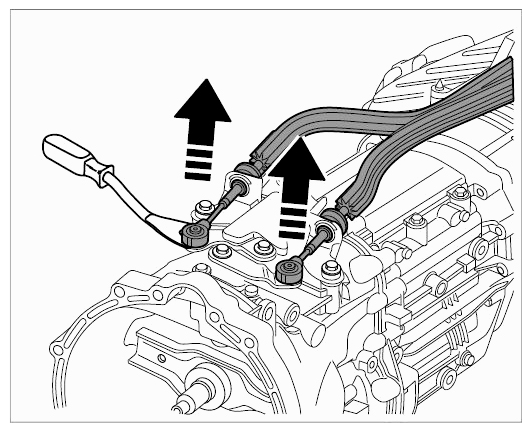

9. Remove shift and selector cables from support using special tool removal tool, universal nr.21.  Remove selector support with cables.
   Fig 10: Removing Selector Support With Cables

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
