Installing Transmission

Information

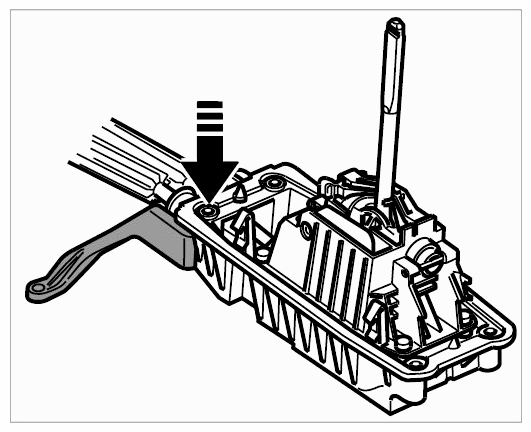

• If available: remove assembly aids from production on bottom section of gearshift bracket -arrow- . These were only needed for the first installation in order to align the gearshift bracket.
  Fig 1: Removing Assembly Aids From Production On Bottom Section Of Gearshift Bracket

  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

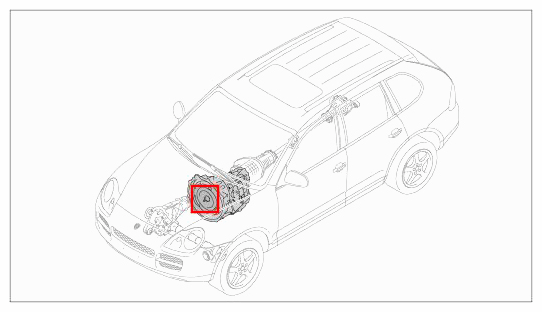

Fig 2: Identifying Overview Of Transmission

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

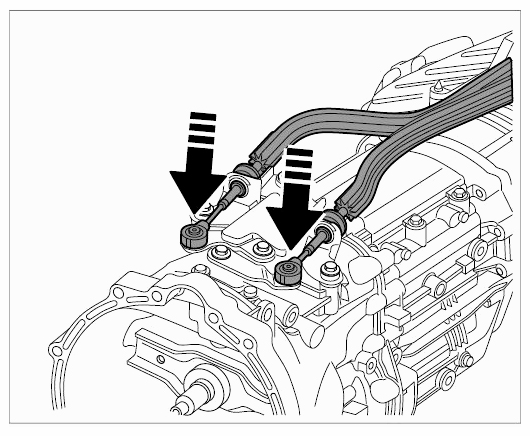

1. Secure the shift and selector cables to the ball head joint on the support.

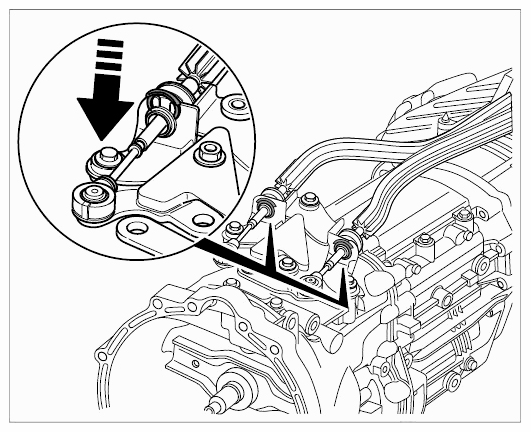

   Fig 3: Securing Shift And Selector Cables To Ball Head Joint On Support

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Install circlips -inset-  on support on the transmission.
   Fig 4: Locating Transmission Circlips

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Raise manual transmission with special tool plate  and transmission jack  .

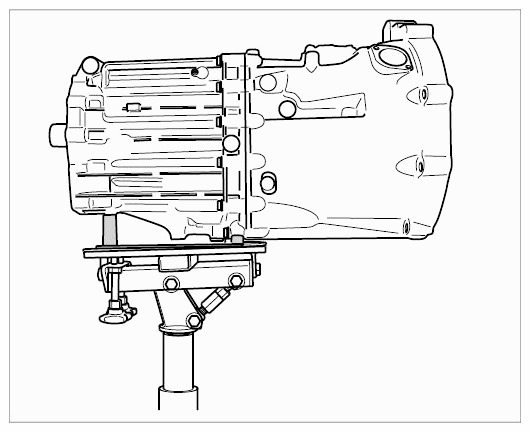

   Fig 5: Supporting Manual Transmission With Special Tool Plate And Transmission Jack

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. Run in transmission. Connect vent line for the transfer gear.
   Fig 6: Locating Vent Line Holder

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

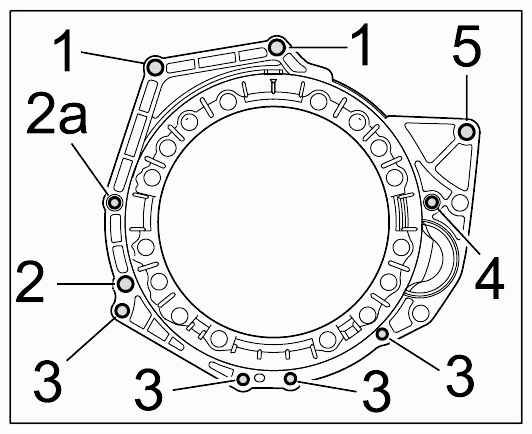

5. Screw in fastening screws for securing transmission to engine. This involves screwing in four screws on the engine side and six on the transmission side. → Tightening torque: 80 Nm (59 ftlb.)  → Tightening torque: 80 Nm (59 ftlb.)  → Tightening torque: 80 Nm (59 ftlb.)  → Tightening torque: 45 Nm (33 ftlb.)  → Tightening torque: 80 Nm (59 ftlb.)  → Tightening torque: 80 Nm (59 ftlb.)
   Fig 7: Identifying Fastening Screws For Securing Transmission To Engine

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

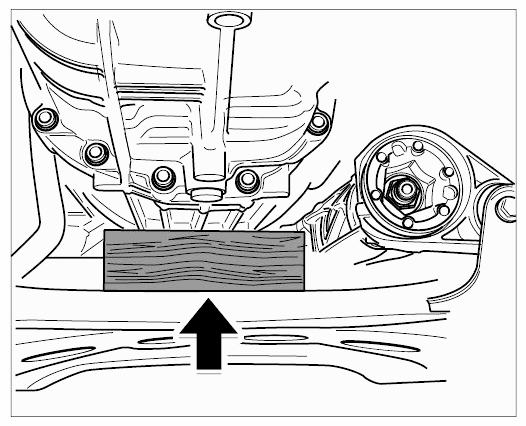

6. Support transmission with a wooden block  on the suspension sub-frame.
   Fig 8: Supporting Transmission With Wooden Block On Suspension Subframe

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

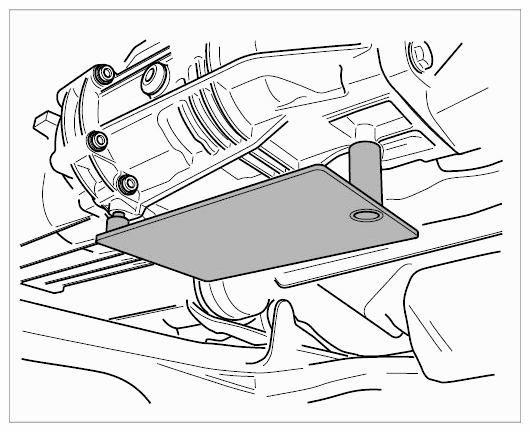

7. Remove special tool plate 9725.
   Fig 9: Identifying Special Tool Plate 9725

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

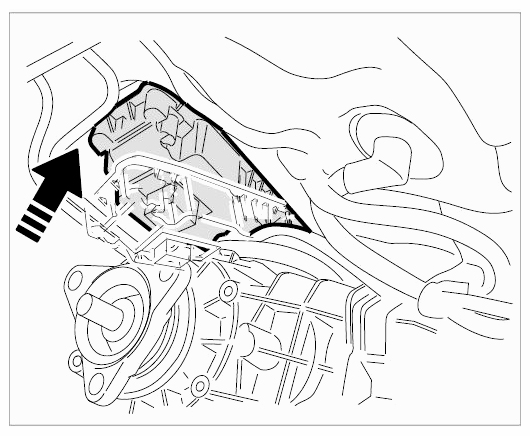

8. Insert gearshift bracket into the opening in the centre tunnel from below.
   Fig 10: Inserting Gearshift Bracket

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
9. Install transfer gear → Installing transfer gear

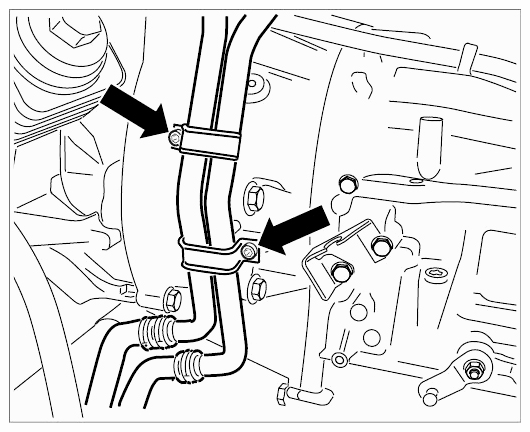

10. Screw in coolant pipe fastening screws on converter bell housing.

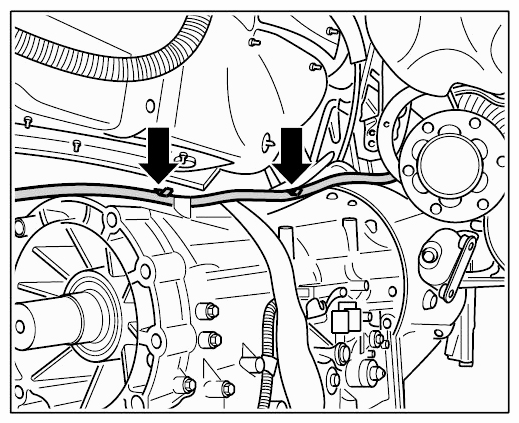

    Fig 11: Locating Coolant Pipes Holder

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.
11. Screw in fastening screws for securing bottom section of gearshift bracket to body. → Tightening torque: 24 Nm (18 ftlb.)

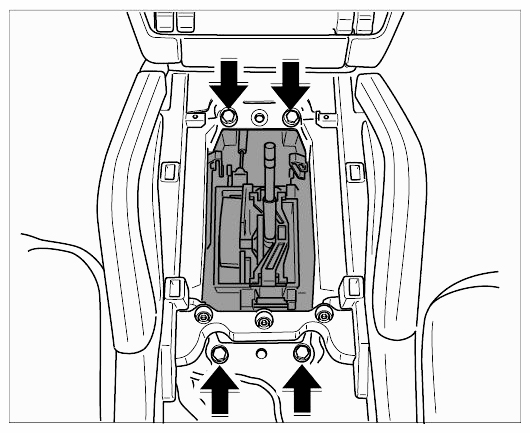

    Fig 12: Locating Gearshift Bracket Fastening Screws

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.
12. Insert insulating mat.

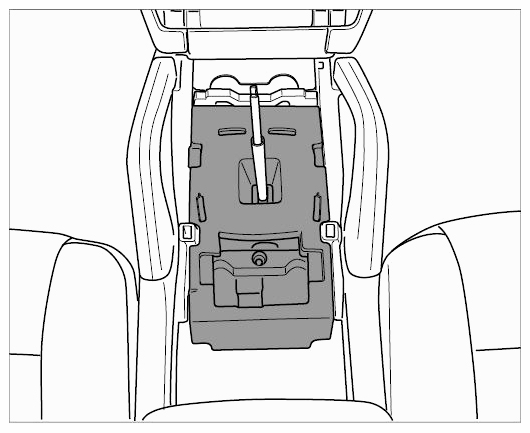

    Fig 13: Identifying Insulating Mat For Centre Console

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.
13. Fit centre console trim. → Installing centre console
