Removing Bar Ignition Modules

  1. Remove bar ignition modules. For securely seated bar ignition modules, use the special tool puller T10095 A -A-  to do this.

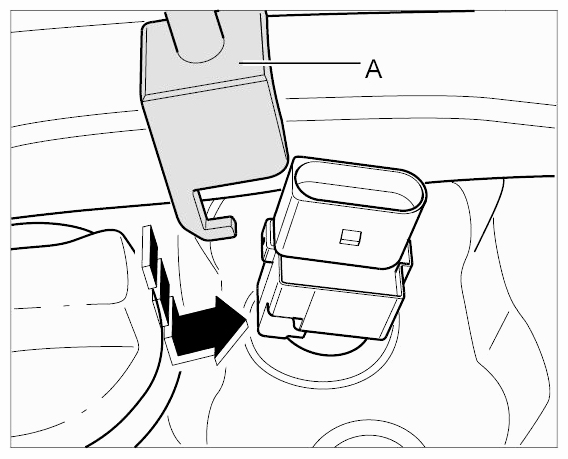

    Fig 1: Locating Puller (T10095 A)
    G09410362Courtesy of PORSCHE CARS NORTH AMERICA, INC.
