Removing Dme Control Unit

→ Remove the ignition key and switch off load before disconnecting or removing load.

Information

• Unscrew the two fastening screws for the cowl panel cover and lift up the cover in this area.  → WM 664419 REMOVING AND INSTALLING COWL PANEL COVER

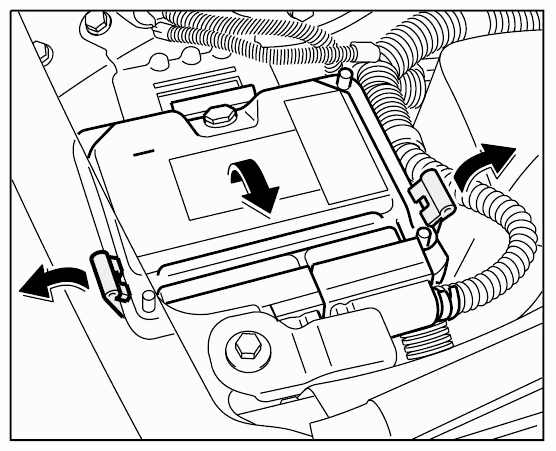

1. Push the two retaining clips aside -arrows-  and pull the control unit forward and remove it.
   Fig 1: Removing Control Unit

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

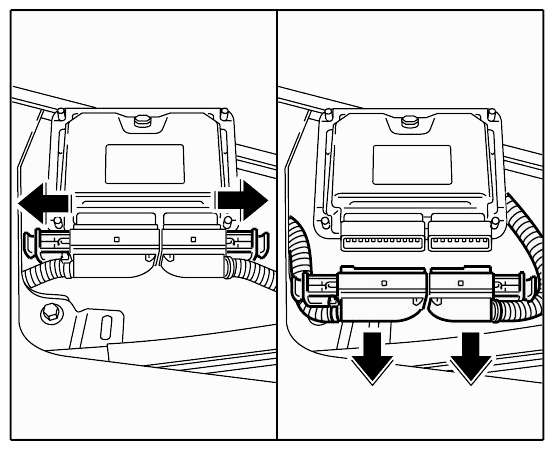

2. Pull out the latch on both connectors in -direction of arrow-  and remove the connectors.
   Fig 2: Removing Control Unit Connector

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
