Installing Oxygen Sensor Ahead Of Catalytic Converter

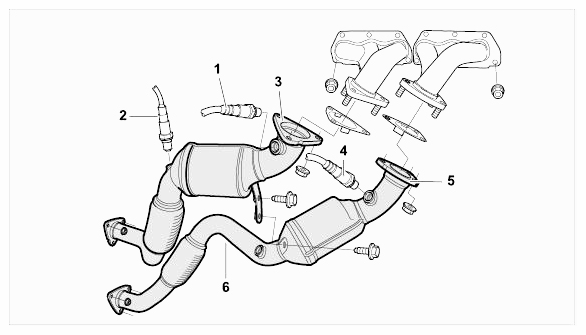

Fig 1: Identifying Oxygen Sensors Related Components

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Carefully coat the thread of the oxygen sensors -1- with 000.043.207.07 and screw in by hand.

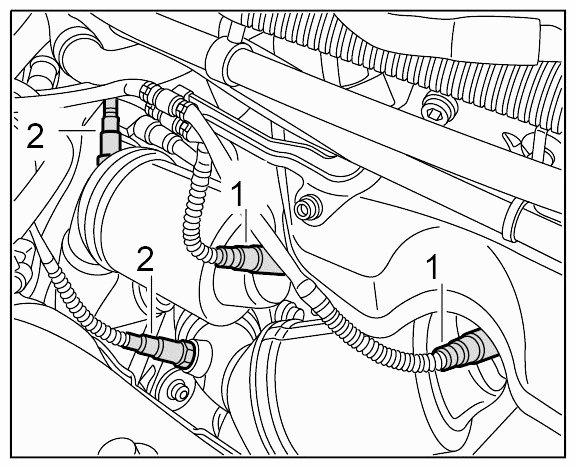

Fig 2: Identifying Installation Position Of Oxygen Sensors
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

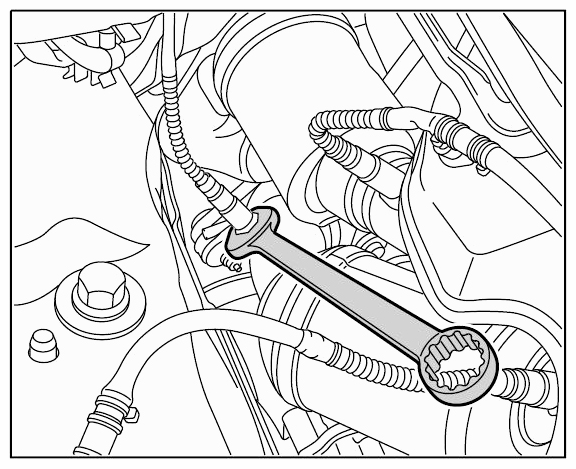

Fig 3: Installing Oxygen Sensors Using Tool
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

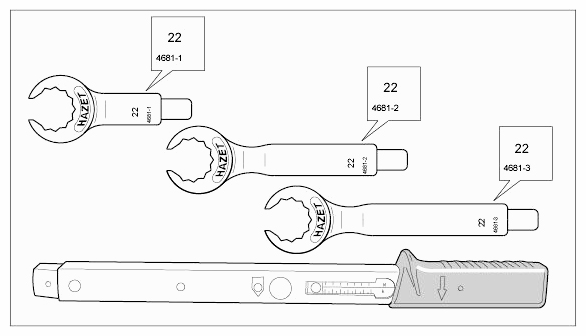

Fig 4: Identifying Oxygen Sensors Special Tool
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Special tools for oxygen sensors - Accessories for torque wrench: Angled open-end/ring wrench Nr.96-3

Special tools for oxygen sensors - Accessories for torque wrench: Angled open-end/ring wrench Nr.97

Special tools for oxygen sensors - Accessories for torque wrench: Angled open-end/ring wrench for assembly Nr.98

Special tools for oxygen sensors - Torque wrench, signal-transmitting with change-over ratchet Nr.90
Route cables for oxygen sensors. Connect oxygen sensors.

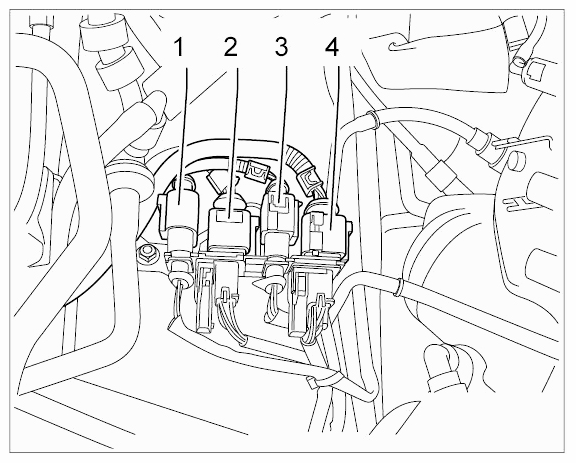

Fig 5: Identifying Cable Plugs On Oxygen Sensors
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
