Installing Crankshaft Pulse Sender

Information

• Check the sealing ring on the crankshaft pulse sender and replace it if necessary.

1. Fit crankshaft pulse sender into the cylinder block. Align and screw fastening screw in hand-tight.

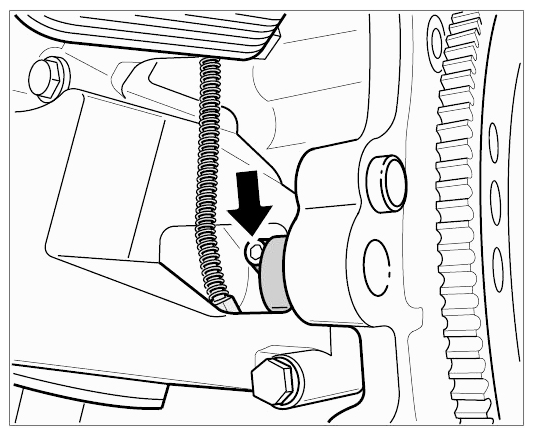

   Fig 1: Locating Crankshaft Pulse Sender

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Tighten fastening screw. Crankshaft pulse sender → Tightening torque: 10 Nm (7.5 ft lbs.)
3. Use a wire or auxiliary cable to guide the cable for the crankshaft pulse sender between the cylinder block and oil-filter housing/engine carrier.
4. Connect cable plug and slide onto oil dip stick guide tube.

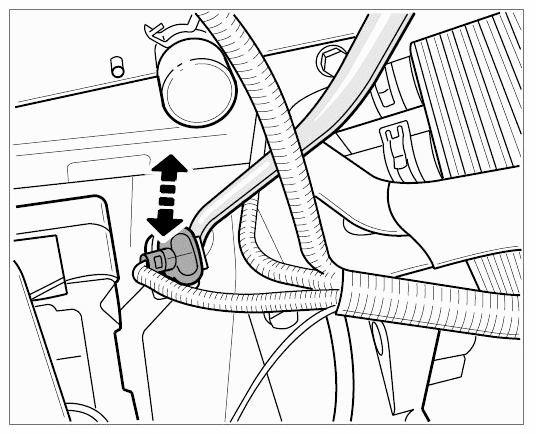

   Fig 2: Connecting Cable Plug Of Crankshaft Pulse Sender

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
5. Press the two coolant hoses onto the intake-air distributor and fit screw on oil dip stick. Insert dip stick. -1-

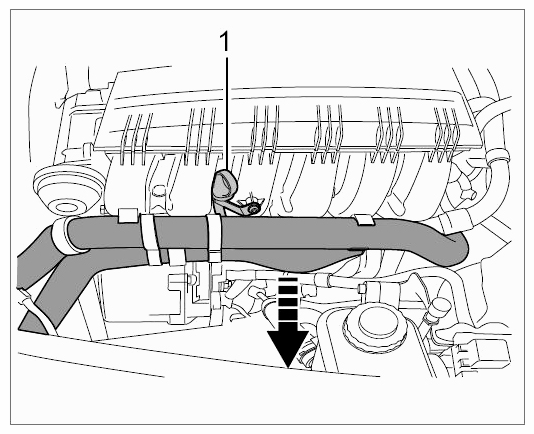

   Fig 3: Removing Coolant Hoses

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
