Removing Hall Sender

Information

• Mark hall sender cable plugs according to position of intake and outlet camshafts.
• Have a mirror and lamp to hand in case the installation position is difficult to see.

1. Pull off cable plugs on camshaft hall senders. Use special tool assembly tool T10118  or an angled piece of wire for this purpose.
2. Unscrew the fastening screws on the hall senders -2-  and carefully remove the hall senders.

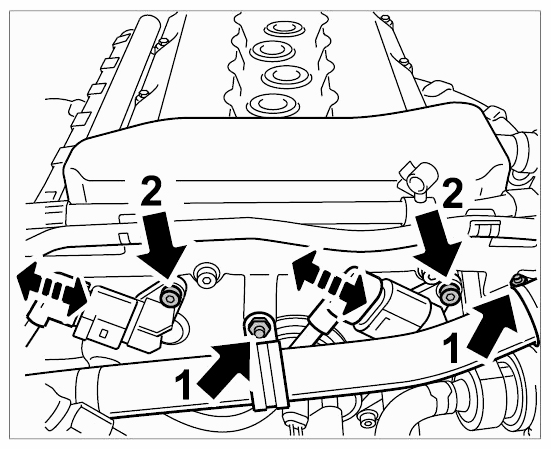

   Fig 1: Removing Hall Senders

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
