Removing Camshafts
Information
- Always counter camshafts at the hexagon because the camshaft bar can break!
Information
- The numbers of the bearing covers on the outlet camshaft 3 are even numbers, counting from the timing chain.
- The numbers of the bearing covers on the intake camshaft 1 are uneven numbers, counting from the timing chain.
- The bearing cover numbers can be read from the intake side.
- Corners of the bearing covers are facing outwards.
- Bearing covers no. 7 and 8 are thrust bearings and guide bearings.

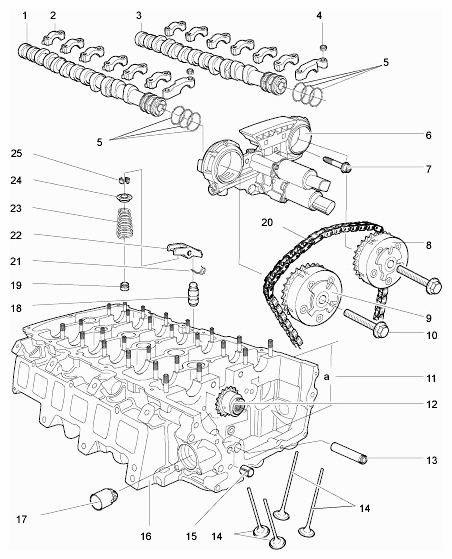

- Remove camshafts.
- Intake camshaft
- Camshaft bearing cover
- Outlet camshaft
- Hexagon nut on camshaft bearing cover
- Sealing rings (40 x 1.5)
- Timing chain housing
- Oval-head screw on timing chain housing
- Outlet camshaft controller (marking 32 A)
- Intake camshaft controller (marking 24 E)
- Hexagon-head bolts on camshaft controllers
- Cylinder head height (min. height a=139.9 mm)
- Drive gear wheel for high-pressure pump
- Bearing shaft
- Valves
- Dowel sleeve
- Cylinder head
- Pump tappet
- Support element
- Valve stem seal
- Timing chain
- Safety clip
- Rocker arm
- Valve spring
- Valve-spring plate
- Valve collets
- 1.1. Remove intake camshaft. Loosen the hexagon nuts on the bearing covers alternately and crosswise. Note the sequence in which the bearing covers are removed.
- 1.1.1. Remove bearing covers 1 and 13.
- 1.1.2. Remove bearing covers 3 and 11.
- 1.1.3. Remove bearing cover 7.
- 1.1.4. Remove bearing covers 5 and 9.
- 1.2. Remove outlet camshaft. Loosen the hexagon nuts on the bearing covers alternately and crosswise. Note the sequence in which the bearing covers are removed.
- 1.2.1. Remove bearing covers 2 and 14.
- 1.2.2. Remove bearing covers 4 and 12.
- 1.2.3. Remove bearing cover 8.
- 1.2.4. Remove bearing covers 6 and 10.
