Removing And Installing Drive Belt

→ Only remove the drive belt when it is cold.

→ Replace damaged drive belt.

→ Following belt breakage, check adjacent components and the interior of the engine compartment for damage, and repair or replace damaged parts if necessary.

→ Find out why the belt broke. Check deflection rollers or crankshaft vibration balancer for prior damage.

→ If the drive belt is jammed, replace vibration balancer.

Information

• If the drive belt is to be re-used, mark the rolling direction with chalk so that the belt can be re-installed later in the same rolling direction.

1. Mark the rolling direction of the drive belt with chalk. -arrow-

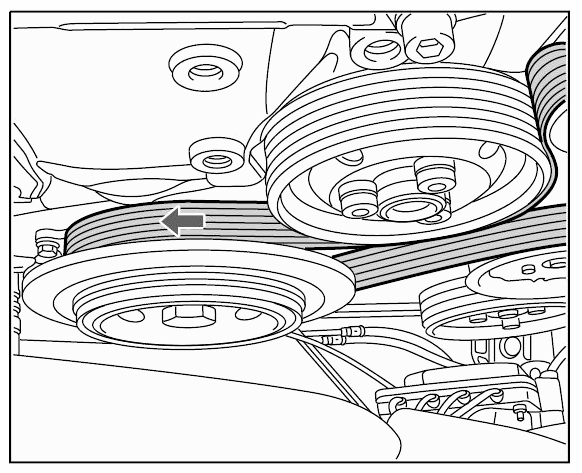

   Fig 1: Rolling Direction Of Drive Belt

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Slacken off the belt tensioner. To do this, screw an M8 x 50 screw into the belt tensioner. Do not turn the belt tensioner as far as it will go; only slacken the tensioner until the drive belt is loose and easily accessible. -arrow-

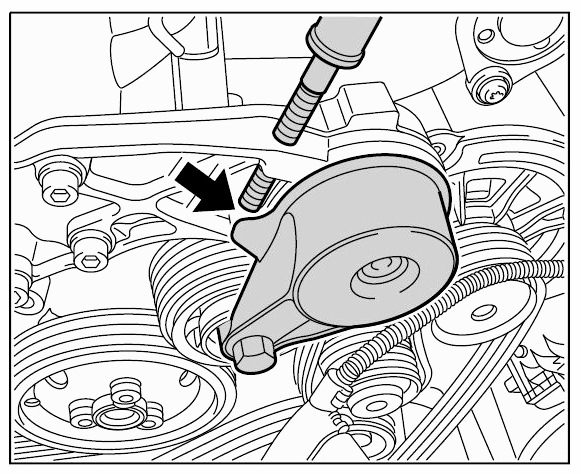

   Fig 2: Loosening Belt Tensioner

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Remove the drive belt from all pulleys.

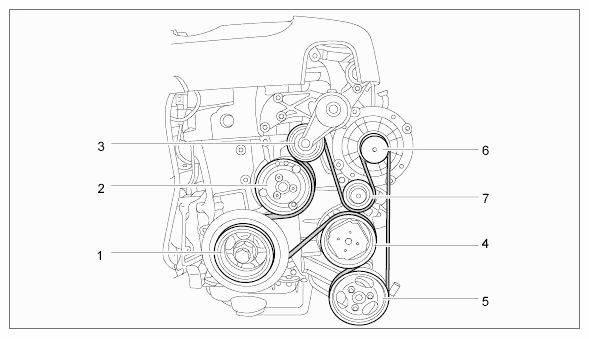

   Fig 3: Drive Belt Pulley Routing Diagram

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   1. -1-  - Crankshaft vibration balancer (crankshaft pulley)
   2. -2-  - Coolant pump
   3. -3-  - Drive belt tensioning roller
   4. -4-  - Air-conditioning compressor
   5. -5-  - Power-steering pump or tandem pump
   6. -6-  - Generator
   7. -7-  - Deflection roller
4. Place drive belt around the vibration balancer and loop in direction of travel going left.

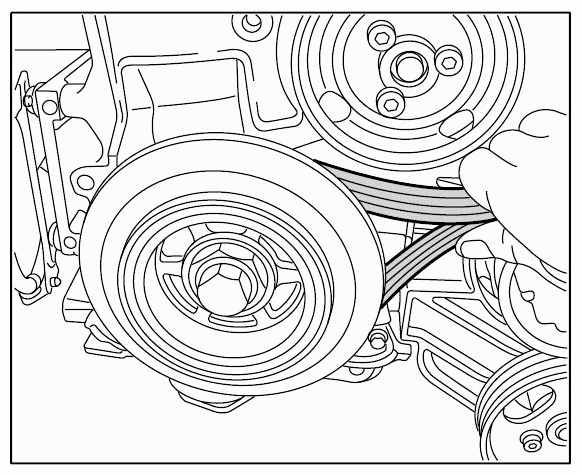

   Fig 4: Positioning Drive Belt Around Vibration Balancer

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
5. Guide the top end of the belt around the coolant pump. Then, position the belt vertically (turn by 90°) and guide it in behind the belt tensioner.

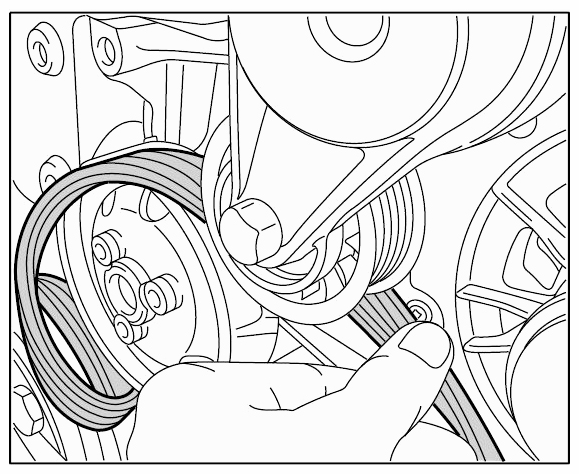

   Fig 5: Positioning Coolant Pump Belt Threading Course

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
6. Guide the lower end of the belt from the vibration balancer around the air-conditioning compressor and then around the hydraulic pump (power-steering pump/tandem pump). Push the belt upwards from there.

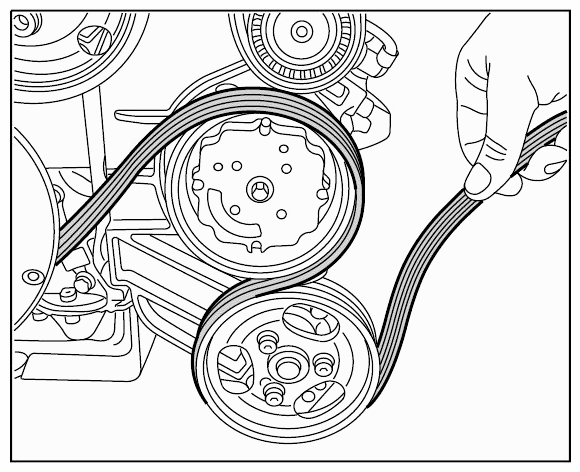

   Fig 6: Positioning Air-Conditioning Compressor Belt Threading Course

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
7. Guide the drive belt over the drive roller of the generator and then pull a loop down around the deflection roller and lay into position.

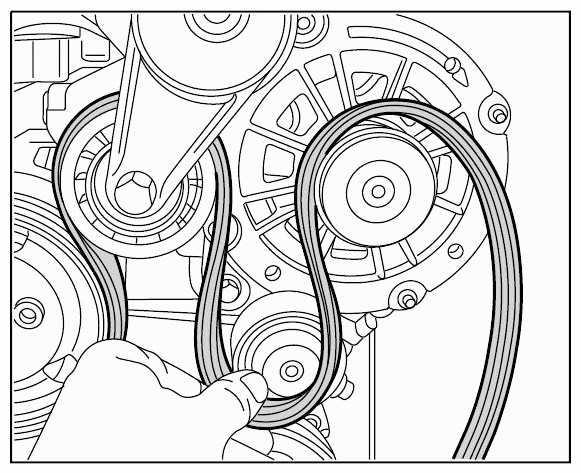

   Fig 7: Positioning Generator Belt Threading Course

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
8. Check that the drive belt is positioned correctly and is placed correctly on the rollers.
9. Tighten the belt tensioner. To do this, remove the M8 x 50 screw on the belt tensioner. -arrow-

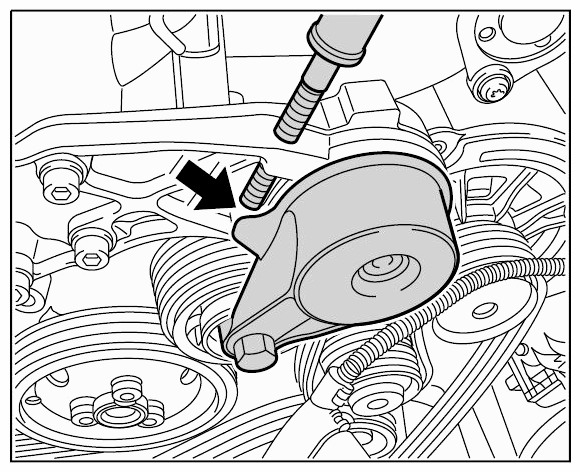

   Fig 8: Locating Belt Tensioner

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
