Removing Belt Tensioner

  1. Screw M8 x 50 screw -arrow-  into the belt tensioner.

    Slacken the belt tensioner until the drive belt is loose.

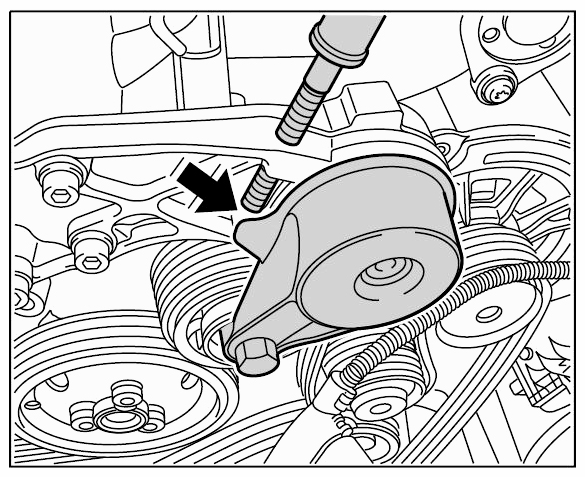

    Fig 1: Locating Belt Tensioner
    G09409044Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Loosen fastening screws for belt tensioner. -arrows-
  3. Remove belt tensioner.

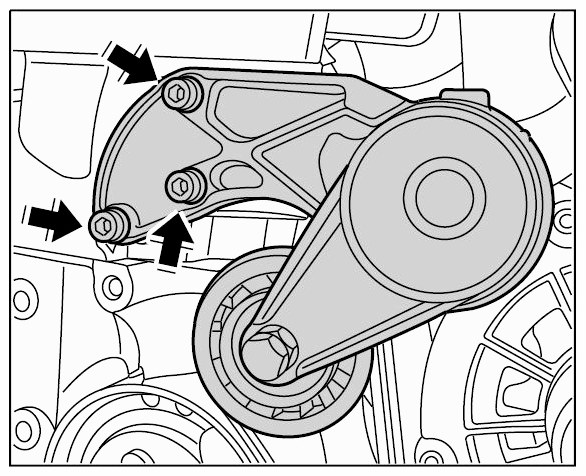

    Fig 2: Locating Belt Tensioner Mounting Bolts
    G09409045Courtesy of PORSCHE CARS NORTH AMERICA, INC.
