Installing Flywheel (Dual-Mass Flywheel)

Information

• Clean the crankshaft stub before installing the flywheel (remove rust).
• Use a special metal-polishing pad (e.g. Never Dull) for this.

1. Clean flange and fit flywheel (align with removal marking if necessary). Fit the new fastening screws and tighten hand-tight.
2. Block flywheel. To do this, attach toothed segment 201a  or toothed segment 9538/1  to a screw hole in the crankcase so that at least one tooth engages with the starter teeth. Place a washer (approx. 5 mm) under the segment if necessary.

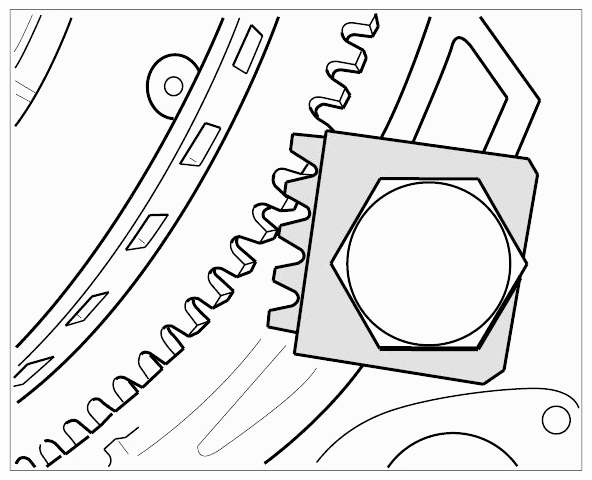

   Fig 1: Identifying Toothed Segment

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

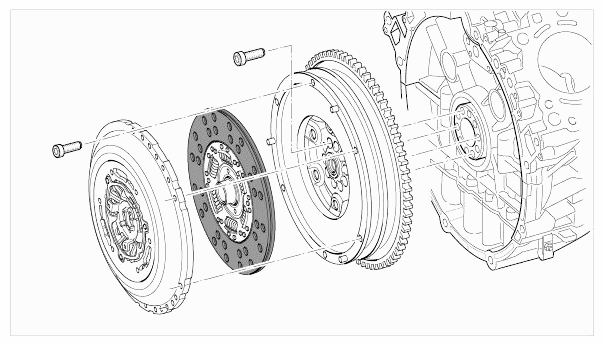

   Fig 2: Exploded View Of Clutch And Flywheel

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Tighten the new fastening screws crosswise. → Tightening torque: 60 Nm (44 ft lbs.)  → Torque angle: 90°

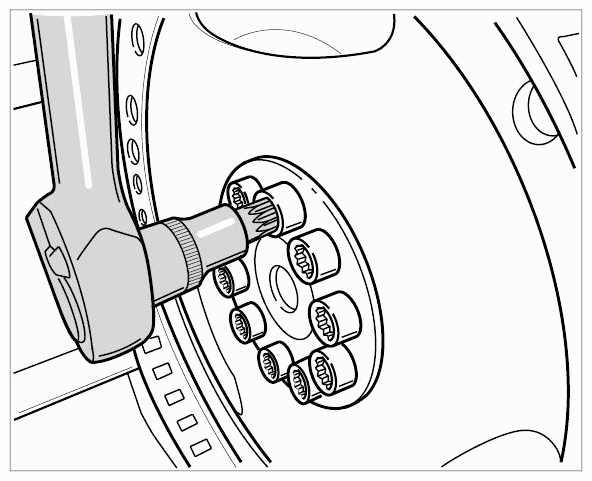

   Fig 3: Tightening Flywheel Fastening Screws

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
