Removing Engine Cover (Design Cover)

  1. Hold throttle cover on the left and right. Pull throttle cover straight up and off. -arrows-

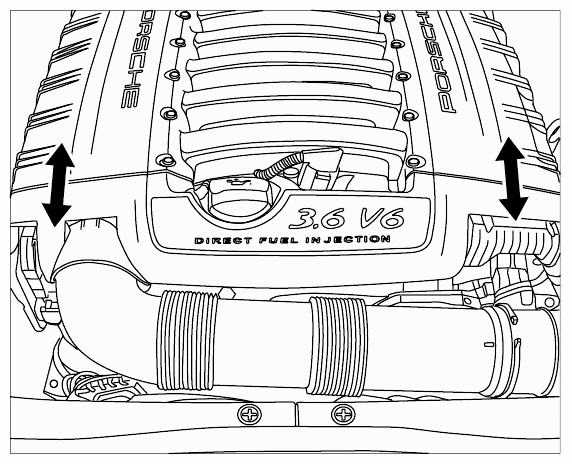

    Fig 1: Pulling Throttle Cover
    G09408949Courtesy of PORSCHE CARS NORTH AMERICA, INC.
