Removing Engine Guard

Remove front cover at the front apron.
1. 1.1. Remove eight screws. -arrows-

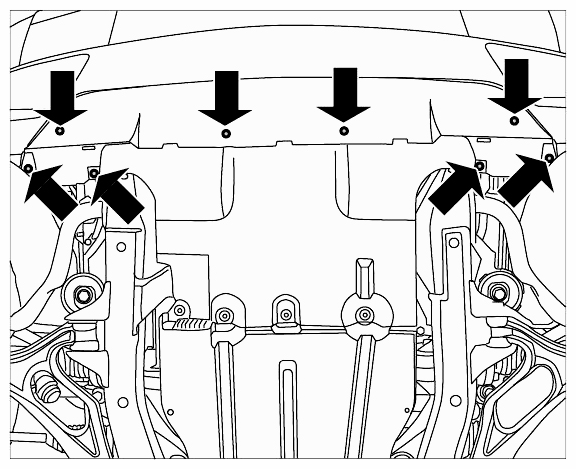

  Fig 1: Locating Cover Screws
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 1.2. Remove cover from front apron.

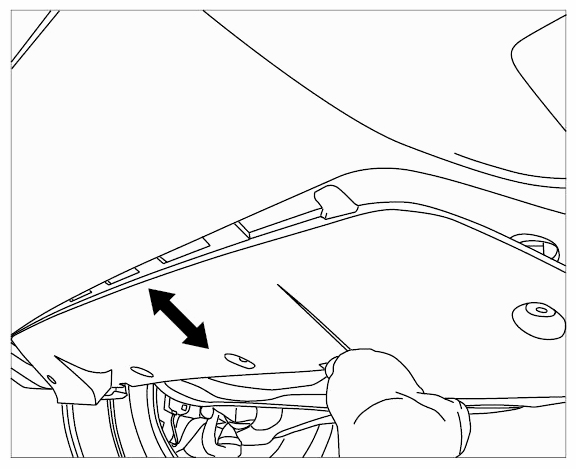

  Fig 2: Removing Cover
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove front engine guard. To do this, undo nine screws. -1, 2 and 3-

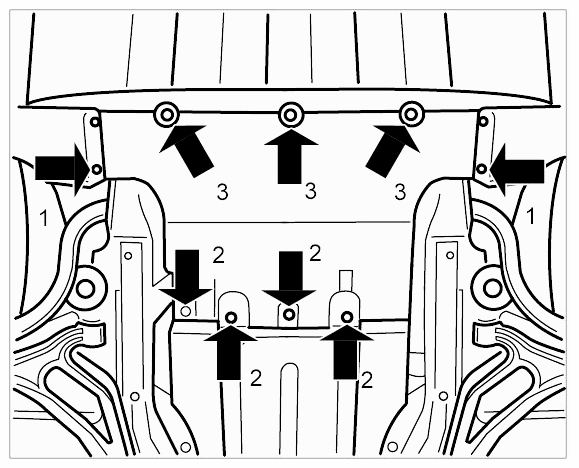

Fig 3: Locating Engine Guard
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove rear engine guard. To do this, remove two screws on the transverse strut -2- . Take the component out of the clamps on the transmission cross member.

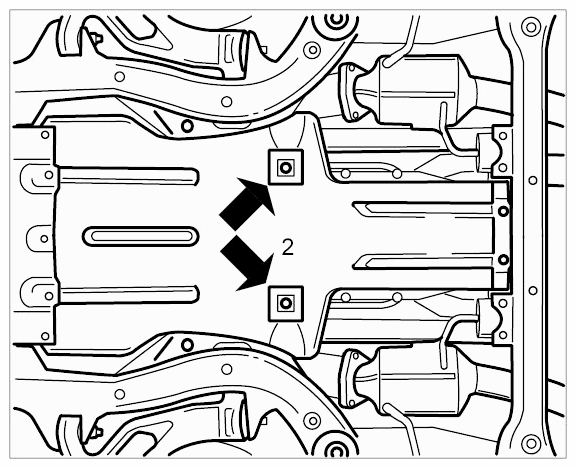

Fig 4: Locating Rear Engine Guard
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove transverse strut if necessary. Undo two nuts. Undo middle screw.

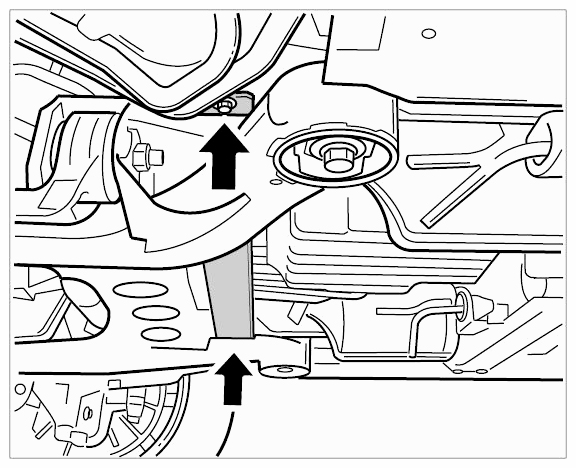

Fig 5: Locating Transverse Strut
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
