Installing Engine Guard

Fit transverse strut if necessary. Fit two nuts. Fit middle screw. → Tightening torque: 9 Nm (6.5 ft lbs.)

Fig 1: Locating Transverse Strut
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

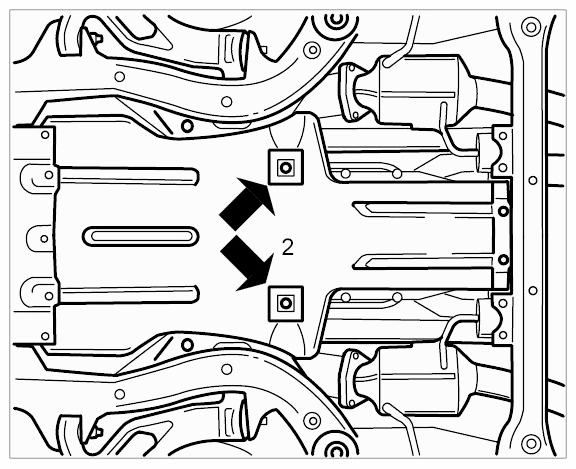

Install rear engine guard. Engage component in clamps on the transmission cross member. To do this, fit two screws on the transverse strut -2- .

Fig 2: Locating Rear Engine Guard
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Install front engine guard. To do this, fit nine screws. -1, 2 and 3-

Fig 3: Locating Front Engine Guard
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Tighten fastening screws. → Tightening torque: 9 Nm (6.5 ft lbs.)
Fit front cover on the front apron.

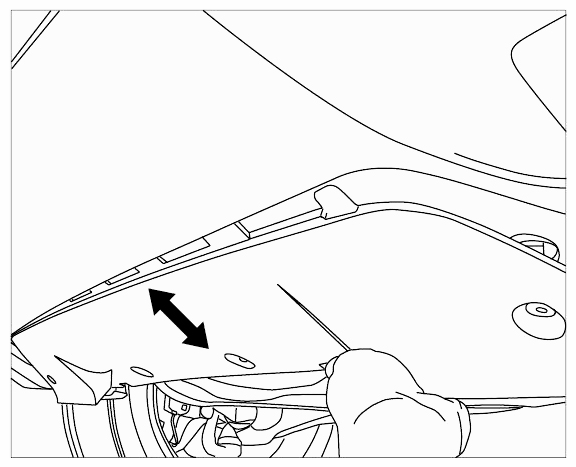

1. 5.1. Push cover into front apron. →

  Fig 4: Pushing In Cover
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 5.2. Fit eight screws. -arrows-

  Fig 5: Locating Cover Screws
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
