Removing Oil Pan

  1. Remove all screws from the oil pan. Remove oil pan.

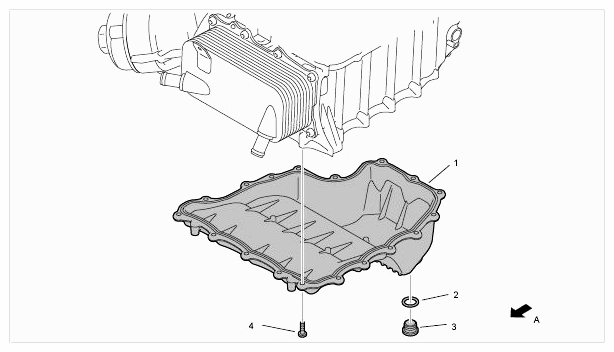

    Fig 1: Identifying Oil Pan Components
    G09409618Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    1. Oil pan with reusable seal inserted
    2. Sealing ring
    3. Oil drain plug, M18 x 1.5
    4. Screw, M6 x 20
    1. Direction of travel
  2. If the seal is damaged when removing the oil pan or if the seal was leaking, the entire oil pan must be replaced. Otherwise the oil pan with the vulcanised seal can be reused.
