Installing Coolant Pump

  1. Clean sealing surfaces and check the condition of the seal that is stuck to the coolant pump for signs of damage → If the seal is leaking or damaged, replace the coolant pump.

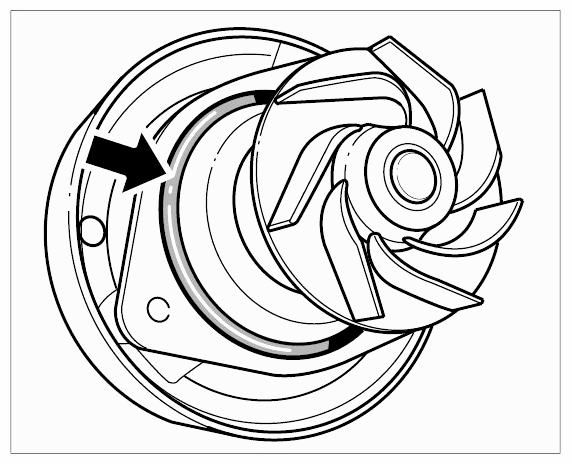

    Fig 1: Locating Coolant Pump O-Ring
    G09409709Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Move coolant pump into installation position.
  3. Screw in and tighten the three fastening screws. → Tightening torque: 8 Nm (6 ft lbs.)

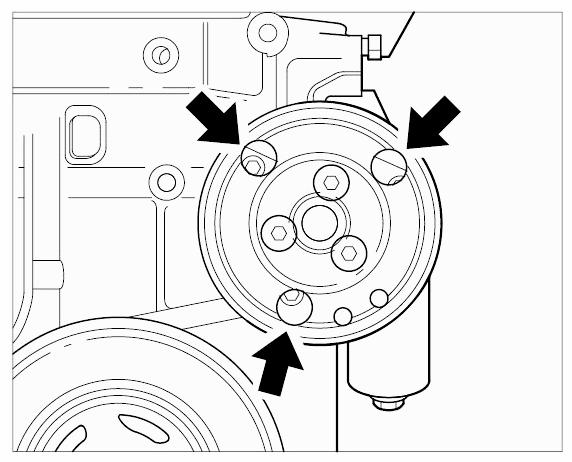

    Fig 2: Locating Coolant Pump Fastening Screws
    G09409710Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  4. Fit pulley if necessary. → Tightening torque: 20 Nm (15 ft lbs.)
