Removing Coolant Reservoir

Pull electric connector off the coolant reservoir.

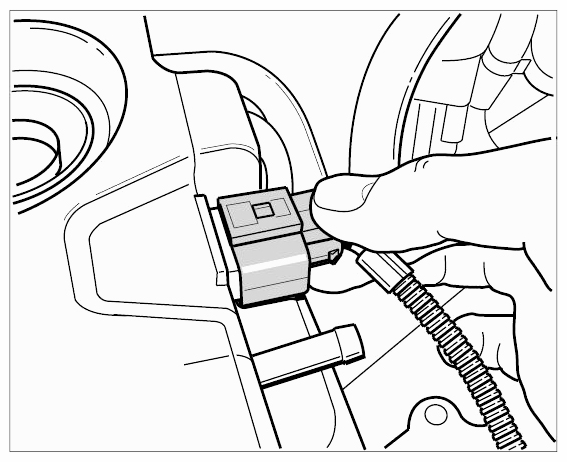

Fig 1: Installing Electric Connector On Coolant Reservoir
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

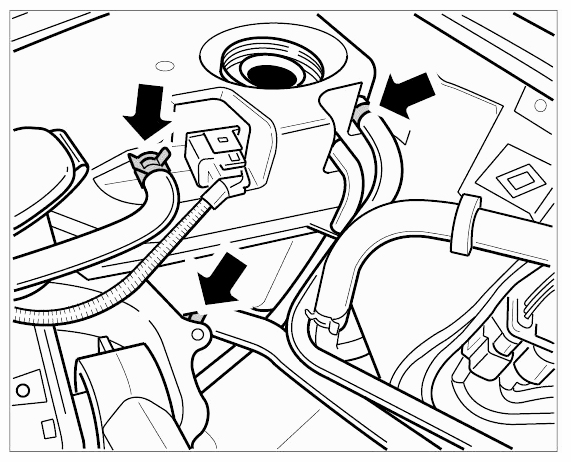

Pull off the three coolant hoses shown.

Fig 2: Locating Coolant Hoses
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Detach the torque support. To do this, unscrew the fastening screw on the torque support bracket and pull it out.

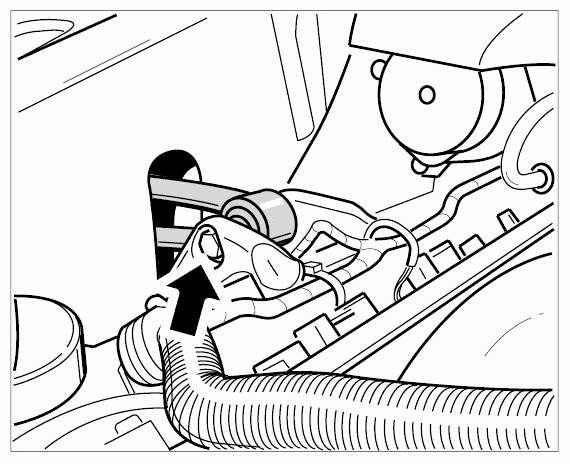

Fig 3: Locating Torque Support Bracket Fastening Screw
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Detach the torque support on the body and swivel upwards.

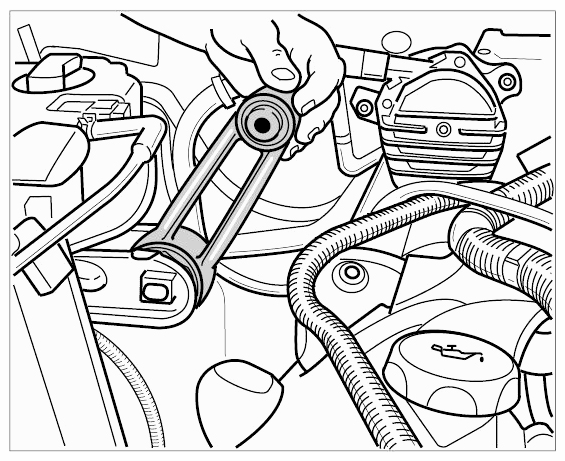

Fig 4: Removing And Installing Coolant Reservoir On DFI Engines
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Loosen torque support bracket fastening screw at the body. One fastening screw is loosened through the headlight opening. The second screw is accessible from the top. View shows screw on spring dome.

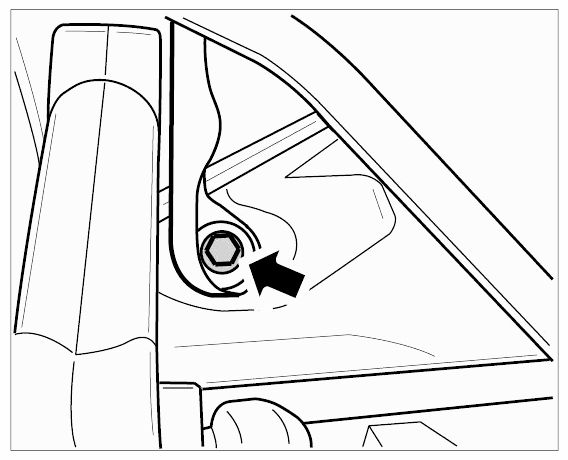

Fig 5: Locating Spring Dome Screw
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

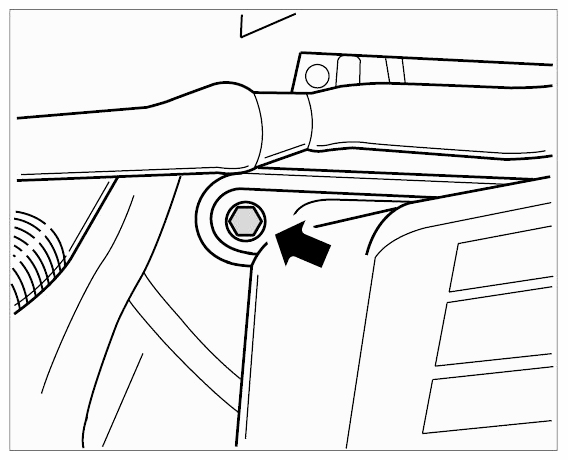

Fig 6: Locating Headlight Mounting Screw
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove body bracket. Unclip the electric cable.

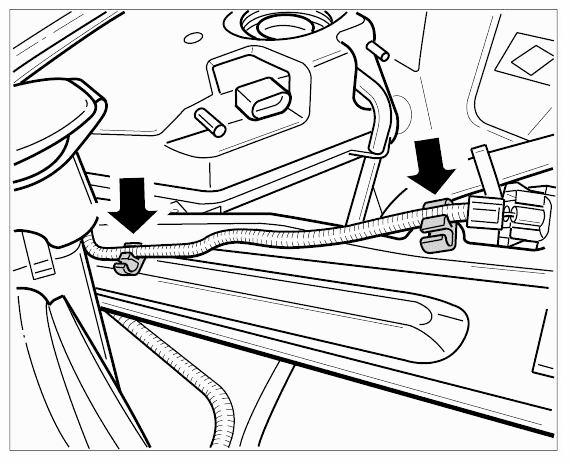

Fig 7: Locating Electric Cable
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

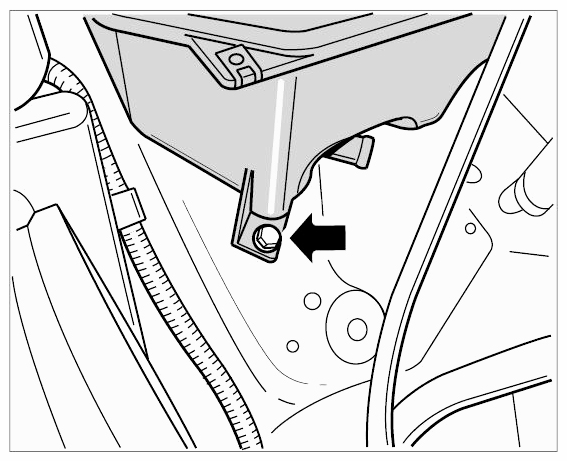

Loosen the fastening screw on the coolant reservoir.

Fig 8: Locating Coolant Reservoir Fastening Screw
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Pull coolant reservoir towards the engine and remove from the holder.

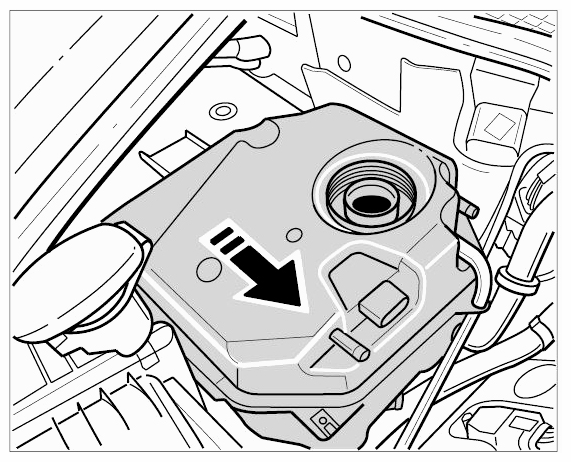

Fig 9: Removing Coolant Reservoir
