Removing Pneumatic Spring For Rear Lid

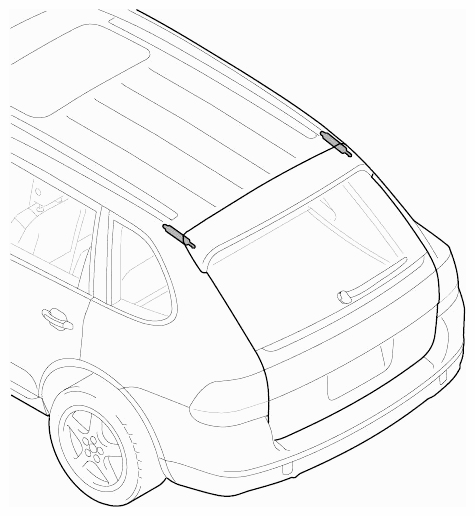

Fig 1: Identifying Pneumatic Spring For Rear Lid

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

→ Do not reach into the danger area.

→ Relieve the tension on components before starting work.

→ Secure components to prevent them from loosening suddenly.

1. Open rear lid and rear window.
2. Unscrew fastening screws -2-  .

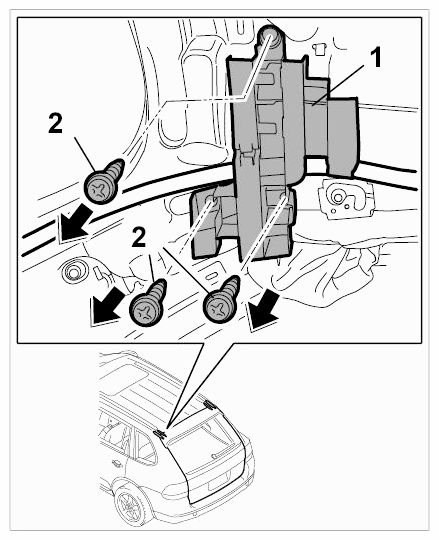

   Fig 2: Removing Fastening Screws

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Unclip and remove the deformation element -1-  .
   Fig 3: Removing Deformation Element

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Information

   • A new lid must be used during installation.
4. Pull cover -3-  off in a downward direction and remove it (-arrows A-).

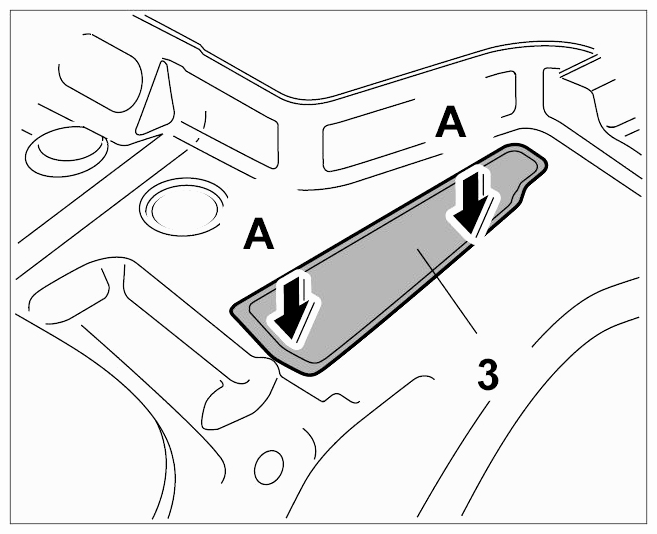

   Fig 4: Pulling Out Cover

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
5. Remove residual sealing material from cover and body.
6. Secure rear lid against accidental closure.
7. Loosen safety clips of pneumatic spring for rear lid -4-  at ball sockets using a screwdriver and remove the clips.

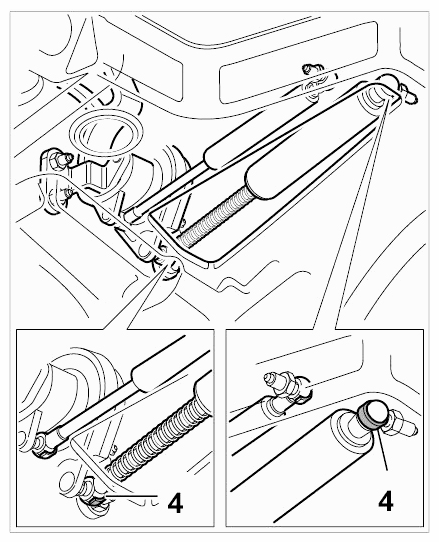

   Fig 5: Identifying Pneumatic Spring For Rear Lid

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
8. Pull the pneumatic spring for the rear lid -4-  from the ball heads and remove.

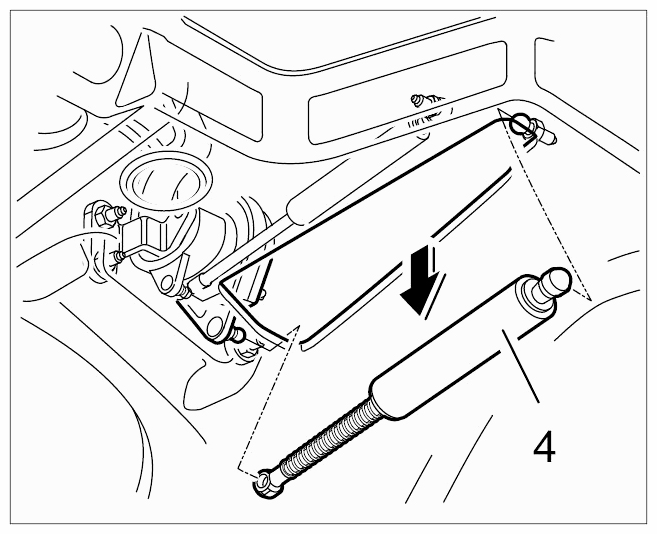

   Fig 6: Pulling Pneumatic Spring For Rear Lid

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
