Removing Spare-Wheel Well

Information

• All straightening work on the body in the connection area of the sheetmetal parts to be replaced must be completed before the damaged parts are removed  .

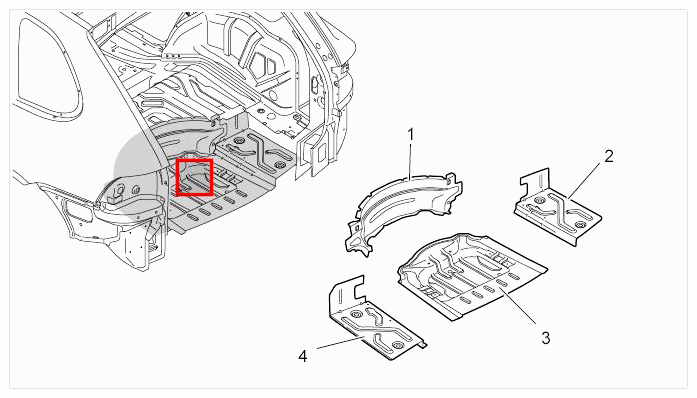

Fig 1: Spare-Wheel Well Component Location

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Cross member
2. Floor section, right
3. Spare-wheel well
4. Floor section, left

1. Remove end plate. → 530555 REPLACING END PLATE
2. Remove lock carrier. → 530955 REPLACING LOCK CARRIER

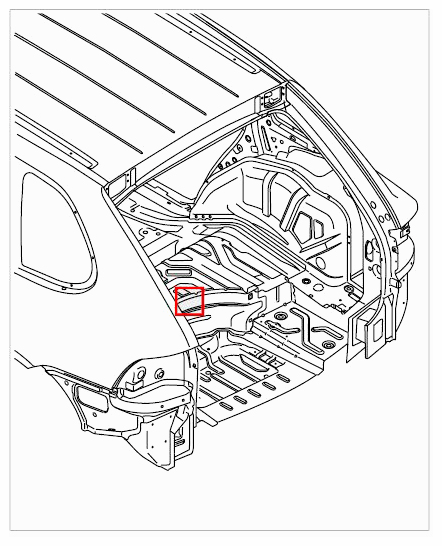

   Fig 2: Overview Of Cross Member - Outside

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Separate cross member.
   1. 3.1. Mill off welded joints on the cross member using the spotweld cutter (area -A-  ).

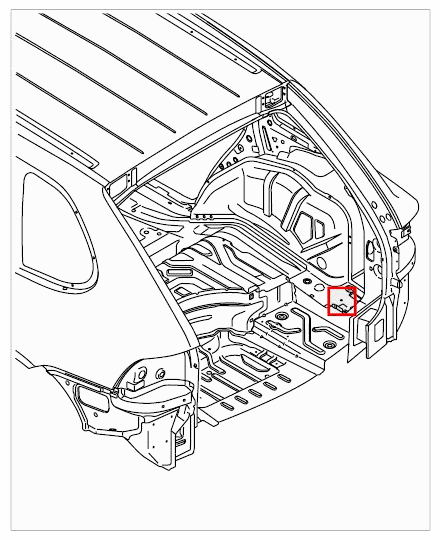

      Fig 3: Separating Welded Joints On Cross Member

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
      Fig 4: Overview From Outside (Body)

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. Separate spare-wheel well with side floor sections.
   1. 4.1. Mill off welded joints on the side floor sections using the spotweld cutter (areas -A and B-  ).

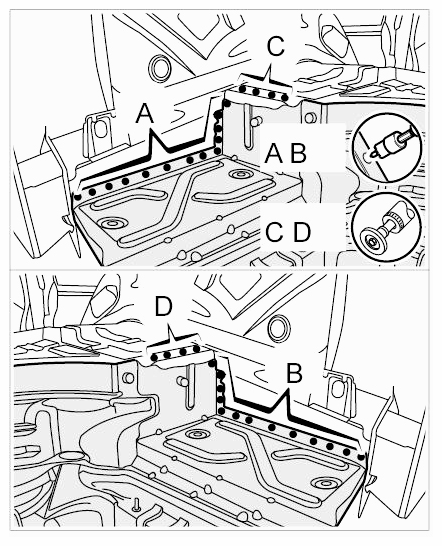

      Fig 5: Separating Welded Joints On Side Floor Sections

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   2. 4.2. Grind off welded joints on the side floor sections - starting from below - using a parting grinder (areas -C and D-  ).

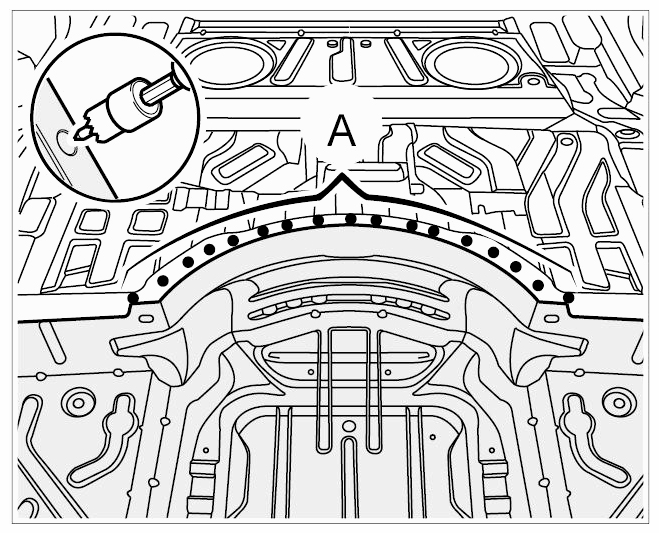

      Fig 6: Overview Of Side Floor Section - Inside

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
5. Cut off side floor section at the back.

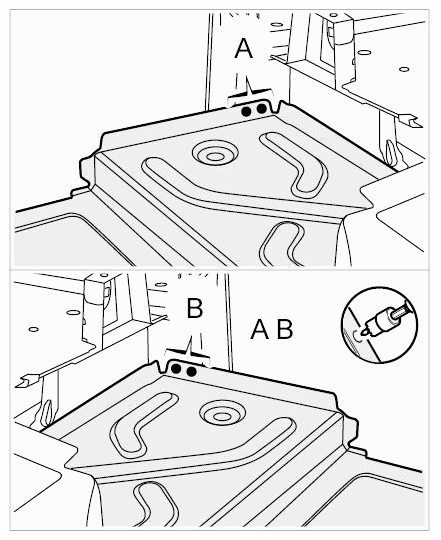

   1. 5.1. Mill off welded joints on the side floor sections at the back using the spotweld cutter (areas -A and B-  ).

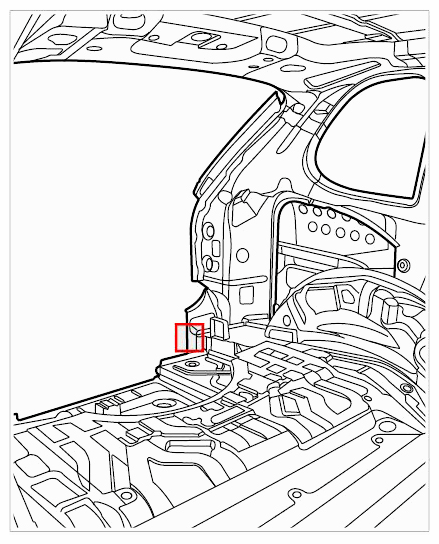

      Fig 7: Separating Welded Joints On Side Floor Sections At Back

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
6. Remove spare-wheel well with cross member and side floor sections.
