Removing Front Wheel Housing Liner

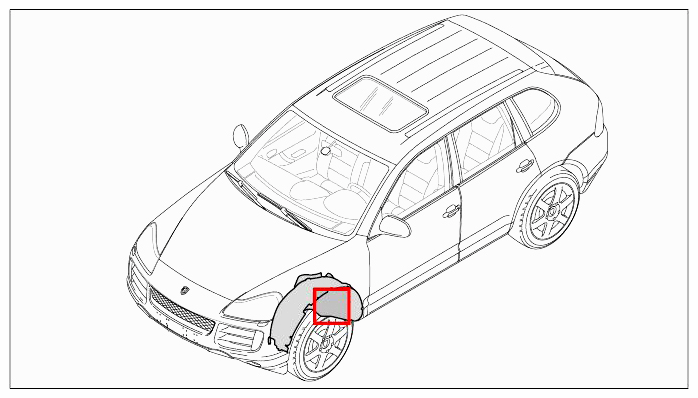

Fig 1: Front Wheel Housing Liner Component Location

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Loosen servo valve line at the left wheel housing liner.

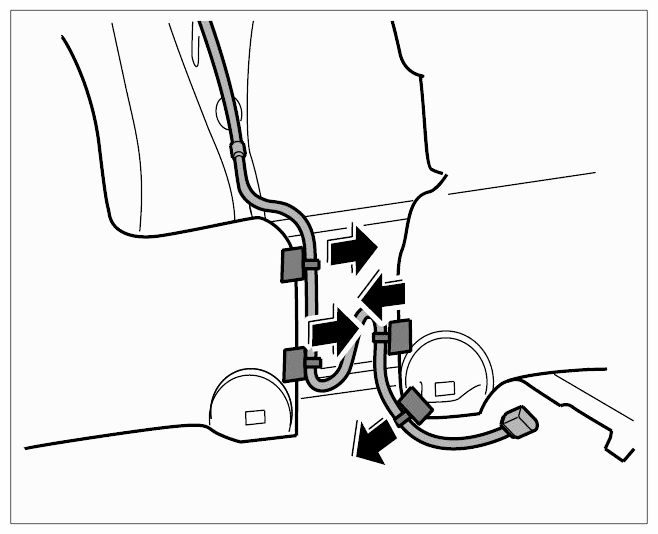

1. 1.1. Pull servo valve wire harness off the left wheel housing liner at the retaining clips -arrows- .

  Fig 2: Loosening Servo Valve Line At Left Wheel Housing Liner
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

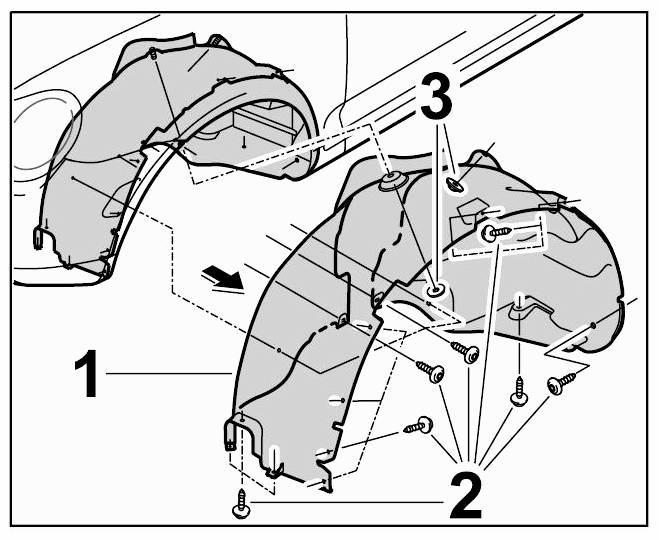

Remove wheel housing liner.
1. 2.1. Unscrew fastening screws -2- .
2. 2.2. Screw fastening nuts -3- off the studs.
3. 2.3. Release the wheel housing liner -1- close to the side direction indicator and in the area where the wheel housing liner meets the wing and remove it in -direction of arrow- .

  Fig 3: Removing Wheel Housing Liner
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
